| Features |
Description |
| Device Type |
8-Port PoE Switch with 2 Gigabit Uplink Ports |
| PoE Ports |
8 × RJ45 10/100 Mbps PoE Ports |
| Uplink Ports |
2 × RJ45 10/100/1000 Mbps Gigabit Uplink Ports |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Power |
Up to 30W per Port / Total 120W PoE Budget |
| Transmission Distance |
Up to 250 meters (Extend Mode) |
| Switching Capacity |
12 Gbps |
| Installation |
Plug & Play, No Configuration Required |
| Application |
IP Camera, Access Point, VoIP Phone and PoE Devices |
| Power Supply |
AC 110–240V |
| Device Type |
AI PoE Switch for CCTV & Network Devices |
| PoE Ports |
8 × 10/100 Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × Gigabit RJ45 Ports |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| MAC Address Table |
2K Entries |
| Forwarding Rate |
8.92 Mpps |
| PERFORMANCE |
| PoE Budget |
120W Total Power Budget |
| Maximum Power per Port |
30W per Port |
| Extend Mode |
Supports Data & Power Transmission up to 250m |
| Protection |
Short Circuit Protection |
| AI Function |
Smart AI PoE Management |
| NETWORK |
| Network Speed |
10/100 Mbps PoE Ports / 10/100/1000 Mbps Uplink Ports |
| Transmission Mode |
Store-and-Forward |
| Compatible Devices |
IP Camera, Wireless Access Point, IP Phone |
| Topology |
Star Network |
| GENERAL |
| Power Supply |
AC 110–240V, 50/60Hz |
| Power Consumption |
Max. 120W |
| Operating Temperature |
0°C to 55°C |
| Dimensions |
Approx. 190 × 100 × 30 mm |
| LED Indicator |
Power, Link/Activity, PoE Status |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

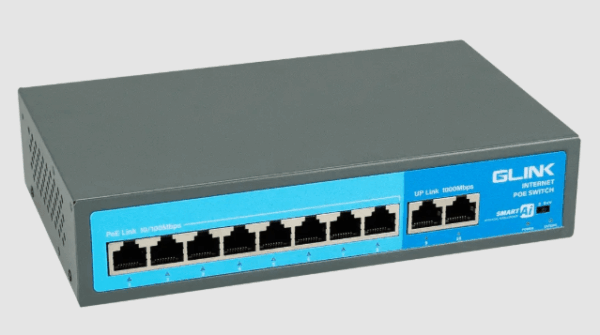

Important: The GLINK GPOE-02 is an 8-port PoE switch designed for CCTV and network installations. It supports IEEE 802.3af/at PoE, provides up to 30W per port with a total PoE budget of 120W, and supports Extend Mode for long-distance transmission up to 250 meters. The 2 Gigabit uplink ports are suitable for connecting NVR, router, or core switches.
