| Features |
Description |
| Device Type |
Industrial Grade Gigabit PoE Switch |
| PoE Ports |
8 × 10/100/1000 Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × Gigabit RJ45 Uplink + 1 × Gigabit SFP Port |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget |
75W Total Power Budget |
| Transmission Distance |
Up to 250 meters (Extend Mode on Port 1) |
| Network Speed |
Gigabit Ethernet 10/100/1000 Mbps |
| Smart Features |
VLAN, Extend 250m, LPP/BSP Protection, Smart AI Watchdog |
| Installation |
DIN Rail Mount / Industrial Installation |
| Power Supply |
AC 100–240V / DC Input Terminal |
| Device Type |
Industrial Gigabit PoE Switch |
| PoE Ports |
8 × 10/100/1000 Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × RJ45 Gigabit + 1 × SFP Gigabit |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Switching Capacity |
16 Gbps |
| Transmission Mode |
Store-and-Forward |
| PERFORMANCE |
| PoE Budget |
75W Total Power Budget |
| Maximum Power per Port |
Up to 30W per Port |
| Extend Mode |
Port 1 supports PoE & Data Transmission up to 250m |
| VLAN Function |
Port Isolation for Network Security |
| Protection |
LPP (Loop Protection Port), BSP (Broadcast Storm Protection) |
| Smart AI |
Watchdog Auto Detection & Recovery |
| NETWORK |
| Ethernet |
10/100/1000 Mbps Gigabit Ethernet |
| MAC Address Table |
2K Entries |
| Compatible Devices |
IP Camera, Wireless Access Point, IP Phone, IoT Devices |
| Topology |
Star Network |
| GENERAL |
| Power Supply |
AC 100–240V 50/60Hz / DC Terminal Input |
| Power Output |
150W Power Budget |
| Operating Temperature |
-10°C to 80°C |
| Storage Temperature |
-40°C to 80°C |
| Protection |
IP40 Industrial Grade |
| Installation |
DIN Rail Mount / Rack Installation |
| Weight |
Approx. 648 g |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

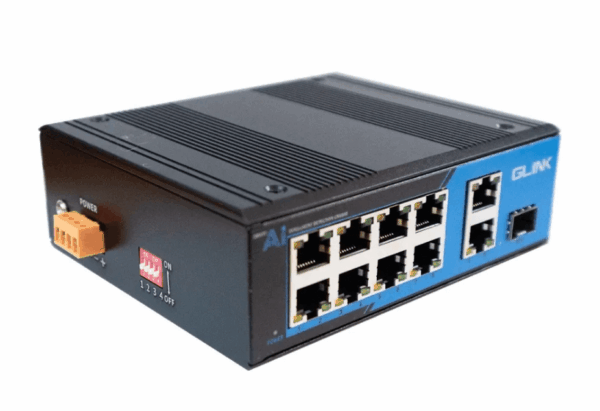

Important: The GLINK GPOE-05 is an Industrial Grade Gigabit PoE Switch designed for CCTV, industrial networks, and outdoor environments. It provides 8 PoE Gigabit ports, 2 RJ45 uplinks, and 1 SFP uplink. The switch supports Extend Mode up to 250 meters, VLAN, LPP/BSP protection, Smart AI Watchdog, and dual power input for reliable 24/7 operation.
