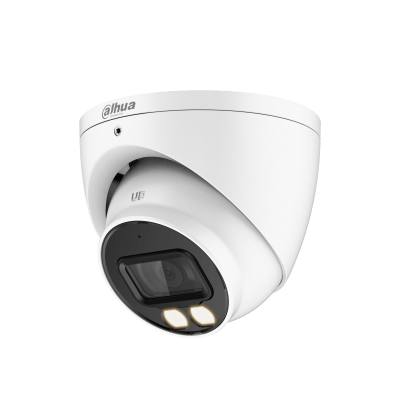

Specifications Dahua HAC-HDW1239TLQP-A-LED
| Features | Description |
|---|---|
| Device Type | 2MP Full-Color Starlight HDCVI Quick-to-Install Eyeball Camera |
| Brand / Series | Dahua / Lite Series (Full-Color / Warm Light Illumination) |
| Image Sensor | 1/2.8″ 2.16 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 1080p (1920 × 1080) @ 25/30 fps |
| Lens Specifications | 2.8 mm or 3.6 mm fixed focal lens options |
| Field of View | (2.8mm) Diagonal: 126.2° | Horizontal: 106.0° | Vertical: 56.5° (3.6mm) Diagonal: 103.6° | Horizontal: 86.9° | Vertical: 46.3° |
| Minimum Illumination | 0.005 Lux @ F1.6 (Color, 30 IRE); 0 Lux with warm light active |
| Night Vision Range | Warm Light Illumination up to 20 meters (65.6 feet) for 24/7 color imaging |
| Protection Rating | IP67 Weatherproof Housing |
| VIDEO, AUDIO & PERFORMANCE | |
|---|---|
| Video Output Options | Switchable via OSD menu: 4-in-1 video output (CVI / TVI / AHD / CVBS analog standards) |
| Image Enhancements | DWDR / 130dB True WDR (depending on hardware version), 3D NR, BLC, HLC, White Balance control |
| Audio Interface | Built-in Microphone (-A model suffix indicates integrated audio capture over coaxial cable) |
| Design Advantage | Quick-to-install eyeball structure to reduce installation and setup time |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Supply | 12V DC ± 30% |
| Power Consumption | Max 3W / 5.94W (12V DC, warm light on) |
| Dimensions & Weight | φ97 mm × 85.8 mm (φ3.82″ × 3.38″) | Net Weight: Approx. 0.22 kg (0.49 lb) |
| Operating Environment | -40°C to +60°C (-40°F to +140°F); Humidity: <95% (non-condensing) |
Note: The Dahua HAC-HDW1239TLQP-A-LED is a cost-effective 2MP full-color HDCVI eyeball camera featuring a large F1.0 aperture lens and warm supplemental LED lighting to provide sharp, vibrant color details 24/7 even in absolute darkness. Equipped with a quick-to-install mounting base, built-in microphone for audio-over-coax transmission, and an IP67 weather-resistant enclosure, it ensures dependable performance for residential and commercial spaces.
Important: This camera delivers 1080p full HD resolution supported by 24/7 full-color starlight technology and warm light illumination up to 20 meters. It features a built-in microphone (-A), 4-in-1 switchable video outputs (CVI/TVI/AHD/CVBS), an easy-install eyeball housing, and operates reliably in extreme temperatures ranging from -40°C to +60°C.
