| Features |
Description |
| Product Type |

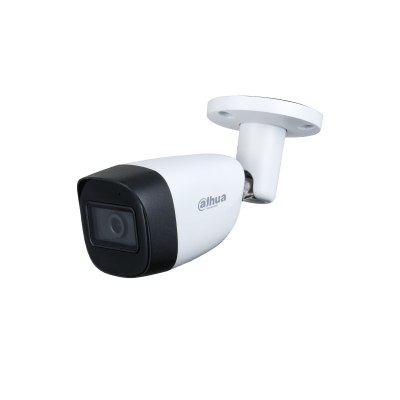

5MP Starlight HDCVI IR Bullet Camera |
| Image Sensor |
1/2.7″ CMOS |
| Max. Resolution |
2880 × 1620 |
| Lens |
3.6 mm Fixed Lens, 2.8 mm Optional |
| Max. Aperture |
F1.6 |
| Minimum Illumination |
0.005 Lux/F1.6, 30IRE; 0 Lux with IR |
| IR Distance |
Up to 30 m |
| Video Output |
HDCVI / TVI / AHD / CVBS via BNC |
| Audio |
Built-in Microphone |
| WDR |
DWDR |
| Power |
12 VDC ±30% |
| Protection |
IP67 |
| Camera |
| Image Sensor |
1/2.7″ CMOS |
| Resolution |
2880 × 1620, 5MP |
| Scanning System |
Progressive Scan |
| Electronic Shutter |
PAL: 1/25 s to 1/100,000 s; NTSC: 1/30 s to 1/100,000 s |
| S/N Ratio |
>65 dB |
| Minimum Illumination |
0.005 Lux/F1.6, 30IRE; 0 Lux with IR |
| Day/Night |
Auto Switch by ICR |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Lens & DORI |
| Lens Type |
Fixed-Focal |
| Focal Length |
3.6 mm; 2.8 mm Optional |
| Lens Mount |
M12 |
| Max. Aperture |
F1.6 |
| FOV – 2.8 mm |
Diagonal: 132°, Horizontal: 111°, Vertical: 58° |
| FOV – 3.6 mm |
Diagonal: 109°, Horizontal: 92°, Vertical: 48° |
| DORI – 2.8 mm |
Detect: 63.6 m, Observe: 25.4 m, Recognize: 12.7 m, Identify: 6.4 m |
| DORI – 3.6 mm |
Detect: 80 m, Observe: 32 m, Recognize: 16 m, Identify: 8 m |
| Illuminator |
| IR Distance |
Up to 30 m |
| Illuminator |
3 IR LEDs |
| IR Control |
Auto / Manual |
| Smart IR |
Supported |
| Video |
| Video System |
HDCVI / TVI / AHD / CVBS |
| HDCVI – PAL |
5MP @ 25 fps, 4MP @ 25 fps, 1080P @ 25 fps |
| HDCVI – NTSC |
5MP @ 25 fps, 4MP @ 30 fps, 1080P @ 30 fps |
| AHD – PAL |
4MP @ 25 fps |
| AHD – NTSC |
4MP @ 30 fps |
| TVI – PAL |
4MP @ 25 fps |
| TVI – NTSC |
4MP @ 30 fps |
| CVBS |
PAL / NTSC 960H |
| Resolution |
5MP (2880 × 1620), 4MP (2560 × 1440), 1080P (1920 × 1080), 960H |
| Image |
| WDR |
DWDR |
| Backlight Compensation |
BLC / HLC |
| Noise Reduction |
2D NR |
| White Balance |
Auto / Manual |
| Gain Control |
Auto / Manual |
| Mirror |
Off / On |
| Privacy Masking |
Up to 8 Areas |
| Audio & Interface |
| Audio |
1-Channel Built-in Microphone |
| Video Output |
1 × BNC, CVI / TVI / AHD / CVBS Switchable |
| Audio Output |
N/A |
| Network |
N/A |
| Alarm I/O |
N/A |
| Power & Physical |
| Power Supply |
12 VDC ±30% |
| Power Consumption |
Max. 3.7 W, IR On |
| Body Material |
Metal |
| Dimensions |
166.6 × 69.7 × 70.0 mm |
| Net Weight |
Approx. 0.33 kg |
| Gross Weight |
Approx. 0.43 kg |
| Environment & Protection |
| Operating Temperature |
-40°C to +60°C |
| Storage Temperature |
-40°C to +60°C |
| Humidity |
<95%, Non-Condensing |
| Protection |
IP67 |
Note: The HAC-HFW1500CM-A is a 5MP HDCVI analog bullet camera with Starlight technology, Smart IR up to 30 m and a built-in microphone. The camera supports CVI, TVI, AHD and CVBS video output.
Important: 5MP 16:9 output is available through HDCVI. The camera is part of the 1500-S2 series, and the XVR firmware may need to be upgraded to support 5MP 16:9 operation.
