| Features |
Description |
| Product Type |

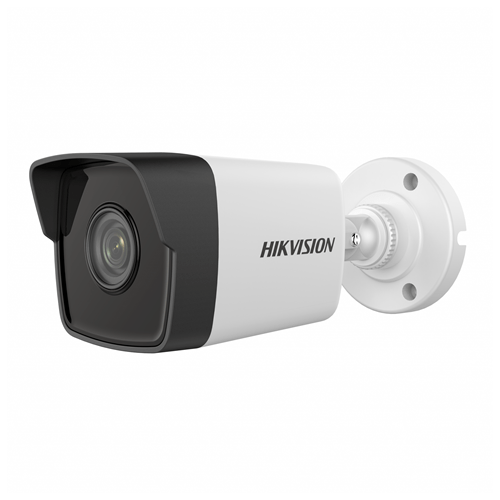

2 MP Fixed Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR |
| WDR |
Digital WDR |
| IR Range |
Up to 30 m, Smart Supplement Light |
| Lens |
Fixed 2.8 mm / 4 mm, M12, F2.0 |
| Audio |
Built-in Microphone |
| Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power Supply |
12 VDC or PoE 802.3af Class 3 |
| Protection |
IP67 |
| Camera |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Image Enhancement |
BLC, 3D DNR |
| SNR |
≥ 52 dB |
| Lens |
| Focal Length |
2.8 mm / 4 mm |
| Field of View |
2.8 mm: H 112.1°, V 60.0°, D 132.2°
4 mm: H 90.2°, V 48.6°, D 107.6° |
| Lens Mount |
M12 |
| Aperture |
F2.0 |
| Video |
| Main Stream |
50 Hz: 25 fps at 1920 × 1080 / 1280 × 720
60 Hz: 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50 Hz: 25 fps at 640 × 480 / 640 × 360
60 Hz: 30 fps at 640 × 480 / 640 × 360 |
| Video Compression |
H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| ROI |
1 Fixed Region for Main Stream |
| Audio |
| Microphone |
Built-in Microphone |
| Audio Compression |
G.711u / G.711a / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Noise Filtering |
Supported |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, UDP, SSL/TLS |
| API |
ONVIF, ISAPI |
| Simultaneous Live View |
Up to 6 Channels |
| Users |
Up to 32 Users, 3 Levels |
| Client |
iVMS-4200, Hik-Connect |
| Storage & Event |
| Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Basic Event |
Motion Detection, Video Tampering Alarm, Exception |
| Event Linkage |
FTP/Memory Card Upload, Surveillance Center, Email, Recording, Capture |
| General |
| Power Supply |
12 VDC ±25%, 0.4 A, Max. 5 W
PoE 802.3af Class 3, Max. 6.5 W |
| Operating Conditions |
-30°C to 60°C, Humidity ≤95% RH |
| Dimensions |
177.6 × 66.2 × 67.8 mm |
| Weight |
Approx. 270 g |
| Protection |
IP67 |
Note: The camera is available with 2.8 mm or 4 mm fixed lens options. It features built-in microphone, MicroSD storage up to 256 GB, Smart IR up to 30 m, and PoE support.
Important: Specifications may vary depending on firmware version and product revision. Please verify the exact lens variant before ordering.
