| Features |
Description |
| Camera Type |
2 MP Fixed Turret Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Lens |
2.8 mm / 4 mm Fixed Focal Lens |
| IR Range |
Up to 30 m |
| Smart Detection |
Human Detection |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @ F2.2, AGC ON; B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0–360°, Tilt: 0–75°, Rotate: 0–360° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M12 |
| Aperture |
F2.2 |
| 2.8 mm FOV |
Horizontal: 94°, Vertical: 51°, Diagonal: 112° |
| 4 mm FOV |
Horizontal: 80°, Vertical: 44°, Diagonal: 94° |
| DORI 2.8 mm |
Detect 48 m, Observe 19 m, Recognize 9 m, Identify 4 m |
| DORI 4 mm |
Detect 55 m, Observe 22 m, Recognize 11 m, Identify 5 m |
| ILLUMINATOR |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps at 1920 × 1080 / 1280 × 720 |
| Main Stream |
60 Hz: 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50 Hz: 25 fps at 640 × 480 / 640 × 360 |
| Sub Stream |
60 Hz: 30 fps at 640 × 480 / 640 × 360 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub Stream Compression |
H.265 / H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| IMAGE & SMART FEATURES |
| Wide Dynamic Range |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Smart Detection |
Human Detection |
| Motion Detection |
Supported |
| Video Tampering |
Exception Detection Supported |
| Privacy Mask |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| PoE |
IEEE 802.3af, Class 3, Max. 6.5 W |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS |
| ONVIF |
Profile S / Profile T |
| API |
ONVIF / ISAPI / SDK |
| Simultaneous Live View |
Up to 6 Channels |
| Users |
Up to 32 Users |
| User Levels |
Administrator / Operator / User |
| Client Software |
iVMS-4200 / Hik-Connect |
| STORAGE & INTERFACE |
| On-Board Storage |
Not Supported |
| Audio |
Not Supported |
| Alarm Input/Output |
Not Supported |
| Reset Key |
Not Available |
| Ethernet |
1 × RJ45 10/100 Mbps |
| SECURITY |
| Security |
Password Protection / Complicated Password / Watermark / HTTP Authentication / Security Audit Log / Host Authentication |
| Password Reset |
Password Reset via Email |
| POWER & PHYSICAL |
| Power Supply |
12 VDC ±25% |
| Power Consumption |
Max. 5 W |
| PoE Power |
IEEE 802.3af, Class 3, Max. 6.5 W |
| Power Connector |
Ø5.5 mm Coaxial Power Plug with Reverse Polarity Protection |
| Material |
Metal & Plastic |
| Mounting |
Wall / Ceiling / Junction Box |
| ENVIRONMENT |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
95% or Less, Non-Condensing |
| Protection |
IP67 |

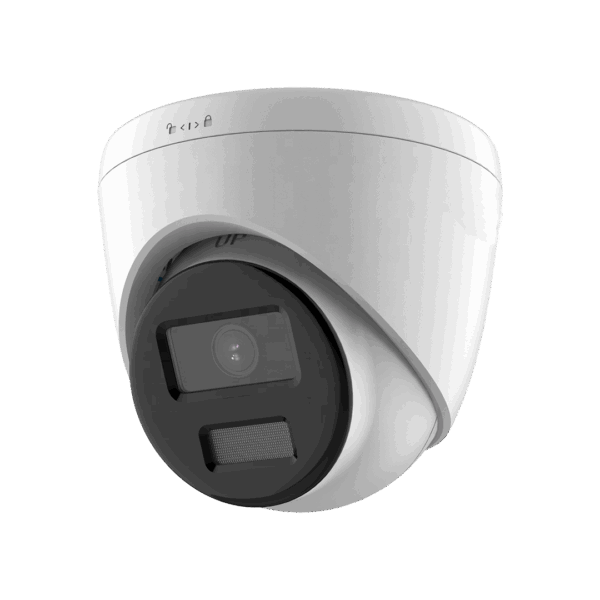

Note: The DS-2CD1321G0-I is a 2 MP fixed turret network camera with IR illumination up to 30 m, Human Detection, H.265+ compression and PoE support.
Important: The DS-2CD1321G0-I does not provide onboard MicroSD storage, built-in audio, or alarm I/O. The camera is available with 2.8 mm or 4 mm fixed focal lens options.
