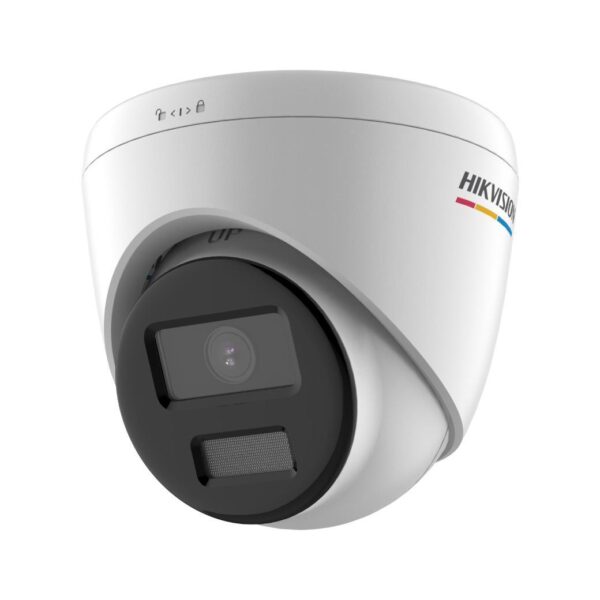

Specifications HIKVISION DS-2CD1347G0-LUF
| Features | Description |
|---|---|
| Product Type | 4 MP ColorVu Fixed Turret Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ F1.0, AGC ON; 0 Lux with white light |
| Wide Dynamic Range | 120 dB WDR |
| ColorVu | 24/7 Color Imaging |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ |
| White Light Range | Up to 30 m |
| Protection | IP67 |
| Camera & Lens | |
|---|---|
| Lens Type | Fixed Lens |
| Focal Length | 2.8 mm / 4 mm |
| Lens Mount | M12 |
| Aperture | F1.0 |
| Focus | Fixed |
| 2.8 mm FOV | Horizontal: 96.5°, Vertical: 50.8°, Diagonal: 113.9° |
| 4 mm FOV | Horizontal: 75.8°, Vertical: 40.8°, Diagonal: 89.1° |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day/Night | Day / Night / Auto / Schedule |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Illuminator | |
|---|---|
| Supplement Light Type | White Light |
| White Light Range | Up to 30 m |
| Smart Supplement Light | Supported |
| Video | |
|---|---|
| Main Stream | 50 Hz: 20 fps at 2560 × 1440; 25 fps at 1920 × 1080 / 1280 × 720 |
| Main Stream | 60 Hz: 20 fps at 2560 × 1440; 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub-Stream | 50 Hz: 25 fps at 1280 × 720 / 640 × 480 / 640 × 360 |
| Sub-Stream | 60 Hz: 30 fps at 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| ROI | 1 fixed region for main stream |
| Slow Shutter | Supported |
| Image | |
|---|---|
| Image Enhancement | BLC, 3D DNR |
| WDR | 120 dB |
| Image Settings | Brightness, Contrast, Saturation, Sharpness |
| Privacy Mask | Supported |
| Watermark | Supported |
| DORI | |
|---|---|
| 2.8 mm | Detect: 64.0 m, Observe: 25.4 m, Recognize: 12.8 m, Identify: 6.4 m |
| 4 mm | Detect: 77.4 m, Observe: 30.7 m, Recognize: 15.5 m, Identify: 7.7 m |
| Audio | |
|---|---|
| Built-in Microphone | Supported |
| Audio Compression | G.711uLaw / G.711aLaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Audio Bit Rate | 16 to 160 Kbps depending on codec |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Noise Filtering | Supported |
| Network & Storage | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6 |
| On-Board Storage | MicroSD / microSDHC / microSDXC, up to 256 GB |
| ONVIF | Supported |
| Remote Access | Hik-Connect, iVMS-4200, Hik-Central |
| Smart Events | |
|---|---|
| Motion Detection | Supported |
| Video Tampering Alarm | Supported |
| Exception Detection | Supported |
| Event Linkage | Upload to FTP / Memory Card, Notify Surveillance Center, Send Email, Trigger Recording and Capture |
| General | |
|---|---|
| Power Supply | 12 VDC ± 25%, 0.4 A, max. 5 W; PoE 802.3af, Class 3, max. 6.5 W |
| Power Interface | Ø5.5 mm Coaxial Power Plug |
| Material | Metal & Plastic |
| Dimensions | Ø109.9 × 103.6 mm |
| Weight | Approx. 380 g |
| Operating Temperature | -30 °C to +60 °C |
| Operating Humidity | 95% or less, non-condensing |
| Ingress Protection | IP67 |
Note: The DS-2CD1347G0-LUF provides 4 MP 24/7 ColorVu imaging with an F1.0 lens, 120 dB WDR, smart white-light illumination up to 30 m, built-in microphone and microSD storage up to 256 GB.
Important: Specifications are based on Hikvision’s available DS-2CD1347G0-LUF datasheet. Features and specifications may vary depending on firmware version or regional model.
