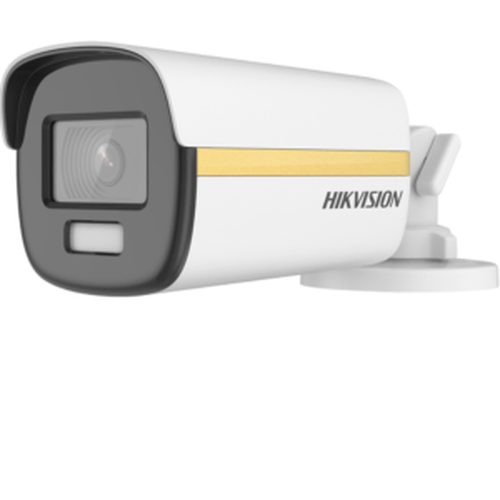

Specifications Hikvision DS-2CE12DF3T-FS

Features	Description
Device Type	2MP ColorVu Audio Fixed Bullet Camera
Brand / Series	Hikvision / Turbo HD ColorVu Series
Image Sensor	2 MP CMOS Sensor
Maximum Resolution	1920 × 1080 (2 MP) @ 25/30 fps
Lens Specifications	2.8 mm, 3.6 mm, or 6 mm fixed focal lens options
Field of View	(2.8mm) Horizontal FOV: 98°, Vertical FOV: 52°, Diagonal FOV: 116° (3.6mm) Horizontal FOV: 77°, Vertical FOV: 42°, Diagonal FOV: 91°
Minimum Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Night Vision Range	Up to 40 meters White Light distance for 24/7 bright color imaging
Protection Rating	IP67 Weatherproof Housing (Water and dust resistant)

VIDEO, AUDIO & PERFORMANCE
Video Output	Switchable 4-in-1 video output (TVl / AHD / CVI / CVBS)
Image Enhancements	130 dB True WDR, 3D DNR, BLC, HLC, Global, HLS
Audio Capabilities	Built-in microphone supporting high-quality audio transmission over coaxial cable (Audio over Coax)
Light Alarm	Solid Light Alarm (White Light)

POWER & PHYSICAL SPECIFICATIONS
Power Supply	12 VDC ± 25%
Power Consumption	Max. 4.4 W
Dimensions & Weight	194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″) | Approx. 515 g (1.13 lb.)
Operating Environment	-40°C to 60°C (-40°F to 140°F); Humidity: 90% or less (non-condensing)

Note: The Hikvision DS-2CE12DF3T-FS is a high-performance 2MP Turbo HD bullet camera featuring ColorVu technology to provide bright, full-color surveillance 24/7. Equipped with an F1.0 aperture lens, true 130dB WDR, and a built-in microphone transmitting audio straight over the coaxial cable, it delivers exceptional daytime and nighttime clarity for outdoor security setups.

Important: The camera features 24/7 full-color imaging powered by an F1.0 large aperture and up to 40 meters of white light illumination. It supports four switchable analog video standards (TVI/AHD/CVI/CVBS), features a rugged IP67 metal enclosure, and operates dependably in extreme outdoor environments ranging from -40°C to 60°C.
