กล้อง

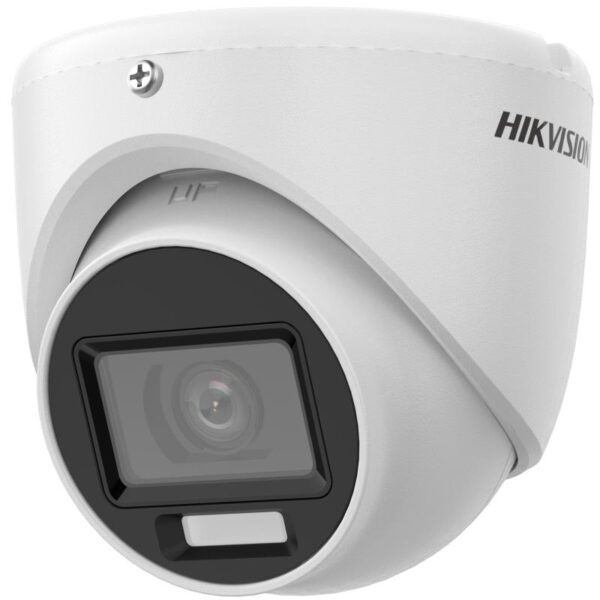

• DS-2CE76K0T-LMFS Image Sensor3K CMOS
• Max. Resolution2960 (H) × 1665 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°

  3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°

• Lens MountM12

Illuminator

• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 30 m

  White Light : Up to 20 m


• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

  AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

  CVI: 4 MP@25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Dimension80 mm × Ø85.1 mm (3.1″ × Ø3.4″)
• WeightApprox. 300 g (0.66 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.9 W

Approval

• ProtectionIP67
