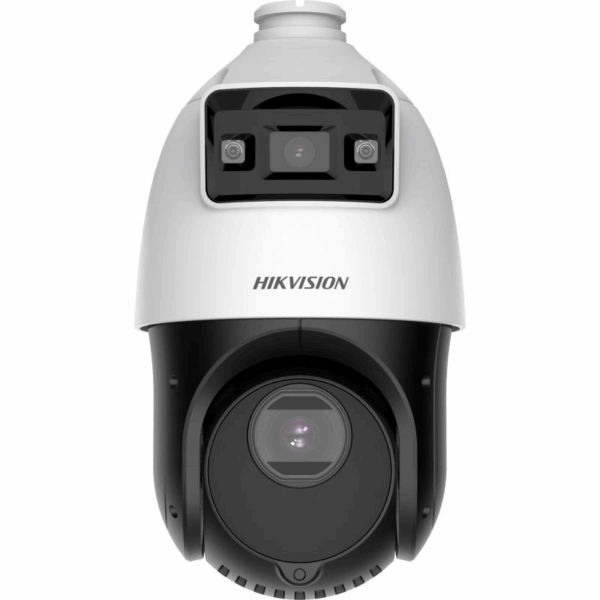

Specifications HIKVISION DS-2SE4C225MWG-E/12(F0)

Features	Description
Product Type	TandemVu 4-inch 2MP 25X Colorful & IR Network Speed Dome
Camera Type	Bullet + PTZ Dual Camera
Resolution	2MP, 1920 × 1080 per Channel
Optical Zoom	25× PTZ Optical Zoom
Digital Zoom	16×
Supplement Light	IR up to 100m / White Light up to 30m
Audio	1 Audio Input / 1 Audio Output
Storage	MicroSD/MicroSDHC/MicroSDXC up to 256GB
Protection	IP66

CAMERA
Image Sensor	1/2.8″ Progressive Scan CMOS for Bullet and PTZ Channels
Resolution	1920 × 1080
Minimum Illumination – Bullet	0.0005 Lux @ F1.0, AGC ON; 0 Lux with White Light
Minimum Illumination – PTZ	Color: 0.005 Lux @ F1.6; B/W: 0.001 Lux @ F1.6; 0 Lux with IR
Day/Night	ICR
Shutter Speed	1s to 1/30,000s
Slow Shutter	Supported
WDR	120dB
S/N Ratio	≥52dB
Image Enhancement	BLC, HLC, 3D DNR, Digital Defog, EIS
Regional Focus	Supported
Regional Exposure	Supported

LENS
Bullet Lens	2.8mm Fixed Lens, F1.0
Bullet FOV	H 106.1° / V 56.8° / D 126.5°
PTZ Lens	4.8–120mm, 25× Optical Zoom, F1.6
PTZ FOV	H 54.8°–2.8° / V 31.4°–1.5° / D 62.2°–3.2°
Focus	Auto / Semi-Auto / Manual
Zoom Speed	Approx. 3.6s

ILLUMINATOR
PTZ Supplement Light	IR
PTZ IR Distance	Up to 100m
Bullet Supplement Light	White Light
Bullet White Light Distance	Up to 30m
Smart Supplement Light	Supported

PTZ
Pan Range	360° Endless
Tilt Range	-15° to 90°, Auto Flip
Pan Speed	0.1°–80°/s; Preset Speed 80°/s
Tilt Speed	0.1°–80°/s; Preset Speed 80°/s
Presets	300
Patrol Scan	8 Patrols, up to 32 Presets per Patrol
Pattern Scan	4 Pattern Scans
3D Positioning	Supported
Power-Off Memory	Supported

VIDEO
Main Stream	50Hz: 25fps; 60Hz: 30fps at up to 1920 × 1080
Sub Stream	50Hz: 25fps; 60Hz: 30fps
Third Stream	Up to 1920 × 1080 at 25/30fps
Video Compression	H.265 / H.264 / MJPEG
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Video Bit Rate	32Kbps to 16Mbps
SVC	Supported
ROI	8 Fixed Regions per Stream

AUDIO
Audio Compression	G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Sampling Rate	8 / 16 / 32 / 48kHz
Audio Bit Rate	32–192Kbps for MP2L2; 16–64Kbps for AAC-LC
Noise Filtering	Supported
Audio Input	1 × Audio Input
Audio Output	1 × Audio Output

NETWORK & STORAGE
Ethernet	1 × RJ45 10/100M Self-Adaptive Ethernet Port
Network Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket
ONVIF	Profile S / G / T
API	ISAPI / SDK / ISUP
Simultaneous Live View	Up to 20 Channels
Users	Up to 32 Users
Memory Card	MicroSD / MicroSDHC / MicroSDXC up to 256GB
Network Storage	NAS (NFS, SMB/CIFS), ANR
Client Software	iVMS-4200 / Hik-Connect

AI & EVENT
Face Capture	Supported on PTZ Channel
Human/Vehicle Classification	Deep Learning Based
Motion Detection	Supported
Video Tampering	Supported
Intrusion Detection	Supported
Line Crossing Detection	Supported
Region Entrance Detection	Supported
Region Exiting Detection	Supported
Audio Exception Detection	Supported
PTZ Linkage	Preset / Patrol / Pattern Actions

POWER & PHYSICAL
Power Supply	12VDC / PoE+
Maximum Power Consumption	24W
Heater Consumption	Max. 2.6W
Supplement Light Consumption	Max. 11W
Material	ADC12
Dimensions	Ø166 × 375mm
Weight	Approx. 2.4kg

ENVIRONMENT
Operating Temperature	-30°C to 65°C
Operating Humidity	≤90% RH, Non-condensing
Demist	Glass Demisting by Heating
Ingress Protection	IP66
Lightning Protection	6kV
Surge Protection	Supported

Note: The DS-2SE4C225MWG-E/12(F0) is a TandemVu camera combining a fixed 2MP ColorVu bullet channel with a 2MP PTZ channel. The PTZ channel provides 25× optical zoom, while the bullet channel provides a wide 106.1° horizontal field of view.

Important: The PTZ channel uses IR illumination up to 100m, while the bullet channel uses white-light illumination up to 30m. Specifications are based on Hikvision’s official product information and datasheet for the F0 variant.
