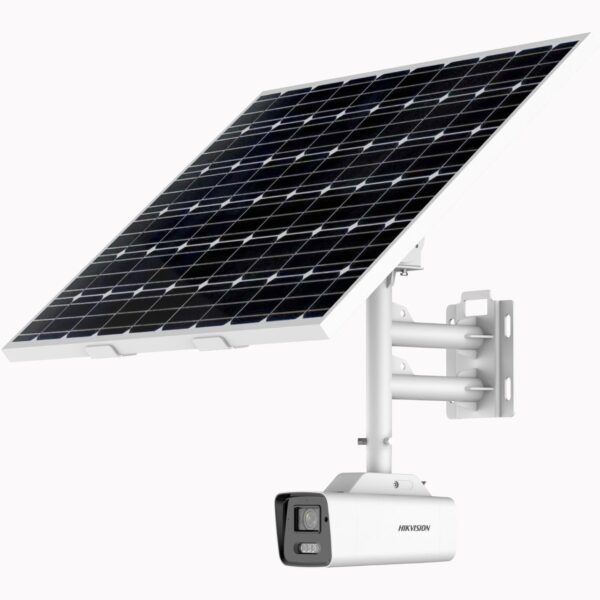

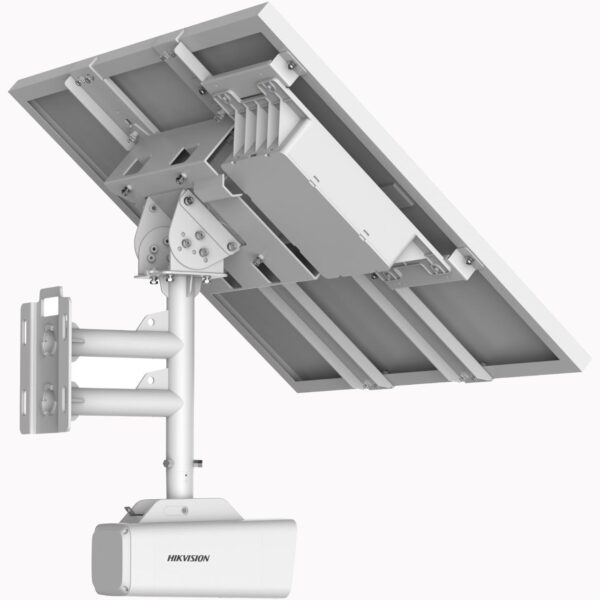

Hikvision DS-2XS6A87G1-L/C32S80

Hikvision รุ่น DS-2XS6A87G1-L/C32S80

4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit

คุณสมบัติ

  • การถ่ายภาพคุณภาพสูงด้วยความละเอียด 8 MP@ 15fps
  • ถ่ายภาพสีสันสดใสตลอด 24 ชั่วโมงทุกวัน
  • ภาพคมชัดแม้แสงด้านหลังแรงเนื่องจากเทคโนโลยี WDR จริง 120 dB
  • มุ่งเน้นไปที่การจำแนกประเภทเป้าหมายของมนุษย์และยานพาหนะตามการเรียนรู้เชิงลึก
  • แผงโซลาร์เซลล์ 80 W, แบตเตอรี่ลิเธียมแบบชาร์จได้ 30 Ah (แบตเตอรี่แยกต่างหาก)
  • รองรับการจัดการแบตเตอรี่, การแสดงแบตเตอรี่, การป้องกันอุณหภูมิสูง-ต่ำของแบตเตอรี่, การป้องกันการปล่อยประจุ, การป้องกันโหมดสลีปแบตเตอรี่ต่ำและการปลุกระยะไกล
  • การส่งผ่านเครือข่ายไร้สาย LTE-TDD/LTE-FDD/WCDMA/GSM 4G รองรับไมโครซิมการ์ด
  • กล้อง: กันน้ำและฝุ่น (IP67)
  • ที่เก็บข้อมูล eMMC ในตัว 64 GB
หมวดหมู่: , , , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Camera

  • Image Sensor1/1.2″ Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Time1 s to 1/100,000 s

Lens

  • Focal Length & FOV

    2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°

    4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°

  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Iris TypeFixed
  • ApertureF1.0
  • Lens MountM20
  • DORI
  • DORI

    2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m

    4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

Illuminator

  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes

Video

  • Main Stream

    50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 12.5 fps (640 × 480, 640 × 360)

    60 Hz: 15 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265

    Sub-stream: H.265/MJPEG

    *Full power mode: main stream supports H.265+

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.265 encoding
  • Region Of Interest (ROI)4 fixed regions for main stream

Network

  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
  • Network Storage

    NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientHik-Connect (low power mode also supports), Hik-central Professional
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

  • SIM Card TypeMicroSIM
  • Frequency

    DS-2XS6A87G1-L/C32S80:

    LTE-TDD: Band38/40/41

    LTE-FDD: Band1/3/5/7/8/20/28

    WCDMA: Band1/5/8

    GSM: Band3/5/8

    DS-2XS6A87G1-L/C32S80 (US):

    LTE-FDD: Band2/4/5/12/13/17/66/71

    WCDMA: Band2/4/5

    DS-2XS6A87G1-L/C32S80 (LA):

    LTE-TDD: Band38/40

    LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66

    WCDMA: Band1/2/3/4/5/8

    GSM: Band2/3/5/8

    DS-2XS6A87G1-L/C32S80 (JP):

    LTE-TDD: Band41

    LTE-FDD: Band1/3/8/11/18/19/21/26/28

    WCDMA: Band1/8

  • Standard

    DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM

    DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA

    DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

    DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA


  • Wide Dynamic Range (WDR)120 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks

Interface

  • RS-4851 RS-485 (half duplex)
  • On-Board Storage

    Built-in memory card slot, support microSD card, up to 256 GB;

    Built-in 64 GB eMMC storage

  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event

    Line crossing detection, up to 4 regions configurable

    Intrusion detection, up to 4 regions configurable

    Region entrance detection, up to 4 regions configurable

    Region exiting detection, up to 4 regions configurable

    Unattended baggage detection, up to 4 regions configurable

    Object removal detection, up to 4 regions configurable,

    The smart events are only supported under full power mode.

  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

  • Power

    12 VDC ± 20%, Ø5.5 mm coaxial power plug

    1. Standby power consumption: 53 mW

    2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).

    3. The max. power consumption: 3.2 W

  • MaterialFront cover: metal, body: metal, bracket: metal
  • Dimension829.9 × 696.3 × 760 mm (32.7″ × 27.4″ × 30″) (Max. size of the camera after it is completely assembled)
  • Package Dimension862 × 292 × 765 mm (33.9″ × 10.3″ × 30.1″)
  • Approx. 25.4 kg (56.0 lb.)
  • With Package WeightApprox. 30.1 kg (66.3 lb.)
  • Storage Conditions-20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter

Battery

  • Battery Type

    Lithium

    *The battery should be ordered separately.

  • Capacity30 Ah
  • Battery Voltage10.8 V
  • Max. Output Voltage12.6 V
  • Operating Temperature

    Charging: -20 °C to 45 °C (-4 °F to 131 °F)

    Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

  • Battery LifeMore than 500 cycles
  • Battery WeightApprox. 3.3 kg (7.3 lb.)
  • Extended Dimension236 × 154 × 80 mm (9.3″ × 6.1″ × 3.2″)

Approval

  • EMC

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    FCC (47 CFR Part 15, Subpart B);

    IC (ICES-003: Issue 7)

  • RF

    CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

    ICASA: same as CE-RED

    FCC ID (47 CFR Part15 Subpart C);

    IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

    MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

  • Safety

    CB (IEC 62368-1:2014+A11)

    CE-LVD (EN 62368-1:2014/A11:2017)

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • Protection

    Camera: IP67 (IEC 60529-2013)

    Wind resistance 12 level
