| Features |
Description |
| Device Type |
128-Channel Ultra Series Network Video Recorder (NVR) |
| Brand / Series |
Hikvision / Ultra Series (Enterprise & Large-Scale Surveillance) |
| IP Video Input |
Up to 128-Channel IP video inputs (supports cameras up to 12 MP resolution) |
| Incoming Bandwidth |
576 Mbps (or up to 640 Mbps outbound bandwidth) |
| Decoding Capacity |
2-ch @ 4K / 8-ch @ 1080p decoding capability |
| Video Outputs |
2 × HDMI (independent outputs up to 4K / 3840 × 2160) and 2 × VGA (independent outputs up to 1080p) |
| Application |
Enterprise security monitoring, large corporate campuses, industrial parks, and high-density multi-camera installations |
| RECORDING, COMPRESSION & AI CAPABILITIES |
| Recording Resolution |
12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MPEG4 |
| Advanced Features |
Supports VCA (Video Content Analytics) detection alarms, fisheye camera de-warping, POS (Point of Sale) overlay integration |
| Dual-OS Design |
Built-in dual operating system design to ensure high reliability and system stability |
| STORAGE & NETWORK INTERFACES |
| Hard Disk Capacity |
16 SATA Interfaces supporting up to 10 TB capacity per HDD (Supports RAID 0, 1, 5, 10 for enterprise data redundancy) |
| Network Interfaces |
4 × Self-adaptive 10/100/1000 Mbps Ethernet Interfaces (supports Network Fault Tolerance and Load Balancing) |
| Auxiliary Ports |
3 × USB ports (2 × USB 2.0 on front, 1 × USB 3.0 on rear); RS-485 and RS-232 serial interfaces |
| Alarm I/O |
16-ch Alarm Inputs / 8-ch Alarm Outputs |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
100 to 240V AC, 50 to 60Hz (Internal redundant power supply options supported) |
| Power Consumption |
≤ 140 W (Without hard disks enabled) |
| Dimensions & Weight |
3U Rack-Mounted Chassis (445 × 496 × 146 mm / 17.5 × 19.5 × 5.7 in) | Weight: ≤ 12.5 kg (27.6 lb without HDD) |
| Operating Environment |
-10°C to +55°C (+14°F to +131°F); Humidity: 10% to 90% RH |

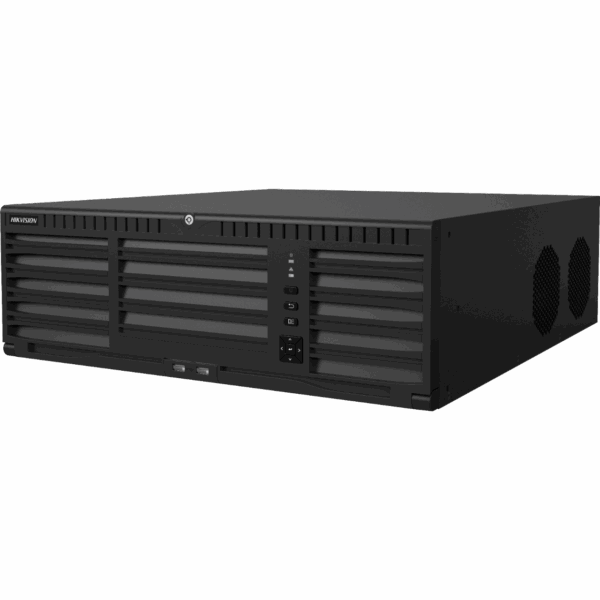

Note: The Hikvision DS-96128NI-I16 is a high-performance 128-channel Ultra Series NVR designed for mission-critical enterprise environments. Equipped with massive 16-HDD storage bays featuring RAID redundancy, quad gigabit network ports, and powerful 576 Mbps incoming bandwidth, it seamlessly handles dense, high-resolution camera streams with exceptional reliability.
Important: This enterprise NVR supports up to 128 IP camera channels and features 16 SATA hard drive slots (accommodating up to 10 TB each with RAID 0/1/5/10 support). It incorporates 4 gigabit network ports for robust network redundancy, dual-OS stability, and operates via an internal 100–240V AC power supply housed within a standard 3U rack-mount enclosure rated for temperatures from -10°C to +55°C.
