| Features |
Description |
| Product Type |
32-Channel 8K Network Video Recorder (NVR) |
| Series |
M Series |
| IP Video Input |
32 Channels |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution |
Up to 32 MP |
| Synchronous Playback |
16 Channels |
| Decoding & Video Output |
Description |
| Decoding Capability |
2-ch @ 32 MP / 2-ch @ 8 MP, or 10-ch @ 8 MP, or 20-ch @ 4 MP, or 32-ch @ 1080p |
| HDMI 1 |
Up to 8K (7680 × 4320) @ 30 Hz |
| HDMI 2 |
Up to 4K (3840 × 2160) @ 60 Hz |
| VGA Outputs |
2 × VGA, up to 1920 × 1080 @ 60 Hz |
| CVBS Output |
1 × BNC |
| Audio Output |
2 × RCA |
| Two-Way Audio |
1 × RCA |
| Storage |
Description |
| SATA |
8 × SATA Interfaces |
| Maximum HDD Capacity |
Up to 14 TB per HDD* |
| eSATA |
1 × eSATA |
| RAID |
RAID 0 / 1 / 5 / 6 / 10 |
| Hot Spare |
N+M Hot Spare |
| Network & Interface |
Description |
| Network Ports |
2 × 10/100/1000 Mbps RJ45 |
| Network Protocols |
TCP/IP, IPv4/IPv6, DHCP, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS |
| USB |
2 × USB 2.0 Front + 2 × USB 3.0 Rear |
| RS-485 |
1 × RS-485 |
| RS-232 |
1 × RS-232 |
| Alarm I/O |
16 Inputs / 9 Outputs |
| General |
Description |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Power Consumption |
Up to 50 W, Without HDD |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10%–90%, Non-Condensing |
| Chassis |
2U Rack-Mount |
| Dimension |
445 × 465 × 93 mm |
| Weight |
Up to 10 kg, Without HDD |

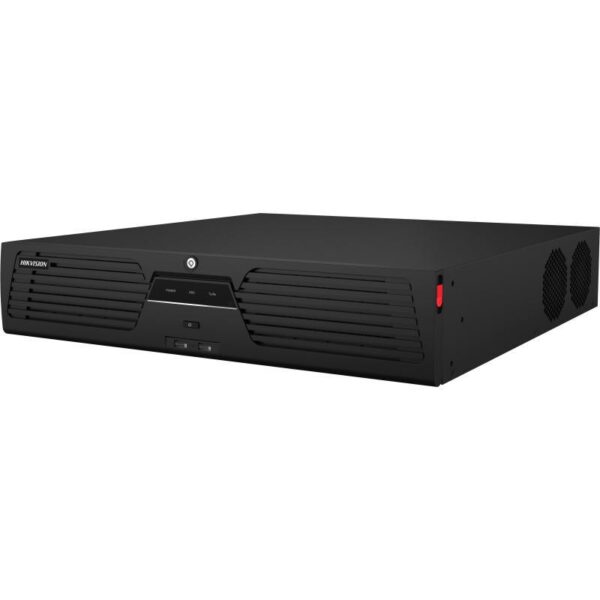

Note: The Hikvision DS-9632NI-M8 is a 32-channel M Series 8K NVR supporting up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth. It provides 8 SATA interfaces, RAID 0/1/5/6/10, up to 8K HDMI output, dual Gigabit Ethernet ports, 16-channel synchronous playback, and advanced functions including VCA, ANPR, people counting, fisheye camera support, and POS integration.
