| Features |
Specifications |
| Product Type |

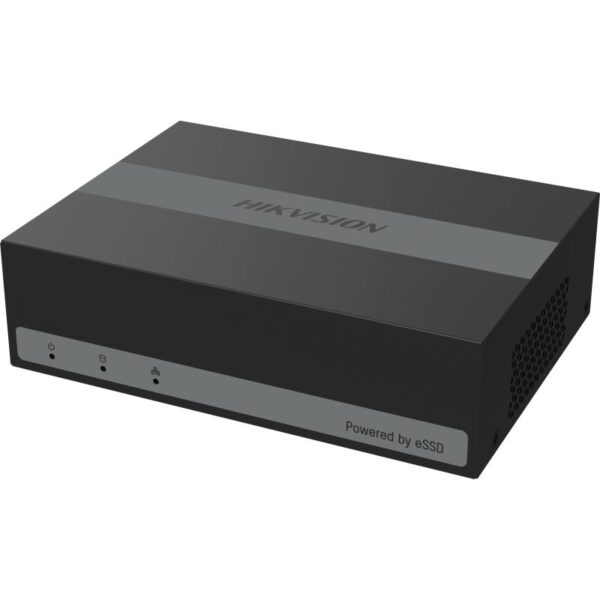

4-Channel 4MP Lite 1U H.265 eSSD DVR |
| Analog Video Input |
4 Channels, BNC |
| IP Video Input |
1 Channel, up to 6MP |
| Video Input |
HDTVI, AHD, HDCVI, CVBS, IP |
| Video Compression |
H.265 Pro / H.265 |
| Encoding Resolution |
4MP Lite, 1080p, 1080p Lite, 720p, 720p Lite, WD1, 4CIF, QVGA, CIF |
| Maximum Recording |
4MP Lite @ 15fps |
| Motion Detection |
Motion Detection 2.0 with Human/Vehicle Classification |
Video & Audio
| Item |
Specifications |
| HDTVI Input |
5MP @ 20fps, 3K @ 20fps, 4MP @ 30/25fps, 1080p @ 30/25fps, 720p @ 60/50/30/25fps |
| AHD Input |
4MP @ 30/25fps, 1080p @ 30/25fps, 720p @ 30/25fps |
| HDCVI Input |
4MP @ 30/25fps, 1080p @ 30/25fps, 720p @ 30/25fps |
| CVBS Input |
Supported |
| Audio Input |
4 Channels via Coaxial Cable |
| Audio Output |
1 Channel via HDMI |
| Audio Compression |
G.711u |
| Audio Bitrate |
64Kbps |
| Synchronous Playback |
4 Channels |
Video Output
| Item |
Specifications |
| HDMI Output |
1 Channel, up to 1920 × 1080 @ 60Hz |
| VGA Output |
1 Channel, up to 1920 × 1080 @ 60Hz |
| Video Output Mode |
HDMI / VGA Simultaneous Output |
AI & Intelligent Functions
| Function |
Specifications |
| Motion Detection 2.0 |
Deep Learning-Based Motion Detection |
| Human Detection |
Supported on All Analog Channels |
| Vehicle Detection |
Supported on All Analog Channels |
| False Alarm Filtering |
Reduces False Alarms Caused by Leaves, Lights and Other Objects |
| Smart Search |
Quick Search by Object or Event Type |
Storage
| Item |
Specifications |
| Storage Type |
Built-in eSSD |
| eSSD Capacity |
512GB |
| Available Capacity |
480GB |
| Storage Design |
Integrated Storage, Plug-and-Play |
| Estimated Storage |
Approximately 2 Weeks for 4 Analog Cameras under Default Parameters |
Network
| Item |
Specifications |
| Total Bandwidth |
72Mbps |
| Incoming Bandwidth |
4Mbps |
| Remote Connection |
Up to 32 Connections |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet |
| Network Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
Interface
| Item |
Specifications |
| USB Interface |
2 × USB 2.0 |
| Alarm Input / Output |
N/A |
| Coaxial Interface |
4 × BNC |
| HDMI |
1 × HDMI |
| VGA |
1 × VGA |
Power & General
| Item |
Specifications |
| Power Supply |
12VDC, 1A |
| Power Consumption |
≤5.4W with eSSD |
| Operating Temperature |
-10°C ~ 45°C |
| Operating Humidity |
10% ~ 90% |
| Dimensions |
151 × 121 × 46mm |
| Weight |
≤0.5kg with eSSD |
| Chassis |
Mini 1U |
| Housing |
Metal |
Note: The DS-E04HQHI-B uses integrated 512GB eSSD storage, with approximately 480GB available capacity.
Important: The recorder supports 4 analog channels and 1 IP channel. The IP input supports cameras up to 6MP resolution, while analog recording supports up to 4MP Lite @ 15fps.
