| Features |
Description |
| Product Type |
Face Recognition Terminal |
| Authentication |
Face / Fingerprint / Card / PIN |
| Face Capacity |
Up to 500 Faces |
| Fingerprint Capacity |
Up to 1,000 Fingerprints |
| Card Capacity |
Up to 1,000 Cards |
| Event Capacity |
Up to 100,000 Events |
| Card Type |
M1 Card, 13.56 MHz |
| Display |
2.4-inch LCD, 320 × 240 |
| Network |
10/100 Mbps Ethernet / 2.4 GHz Wi-Fi |
| Face Recognition |
| Face Recognition Distance |
0.3–1.5 m |
| Recognition Speed |
< 0.2 s/User |
| Face Capacity |
500 Faces |
| Face Anti-Spoofing |
Supported |
| Supplement Light |
White Light |
| Camera |
2 MP |
| Video Resolution |
720P Stream |
| Field of View |
HFOV 43° / VFOV 25° |
| Authentication |
| Authentication Modes |
Face / Fingerprint / Card / Password |
| Card Type |
M1 Card |
| Card Frequency |
13.56 MHz |
| Card Reading Distance |
0–5 cm |
| Fingerprint Capacity |
1,000 Fingerprints |
| Card Capacity |
1,000 Cards |
| Event Capacity |
100,000 Events |
| Display & Interface |
| Screen |
2.4-inch LCD |
| Screen Resolution |
320 × 240 |
| Network Interface |
1 × RJ-45, 10/100 Mbps Self-Adaptive |
| Lock Control |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Tamper |
1 |
| USB |
1 × USB |
| Audio |
Built-in Buzzer |
| Network & Communication |
| Wired Network |
10/100 Mbps Self-Adaptive Ethernet |
| Wi-Fi |
2.4 GHz, IEEE 802.11b/g/n |
| Protocol |
ISAPI / ISUP 5.0 |
| Configuration |
Web Client |
| Access Controller |
Built-in |
| Attendance Function |
Supported |
| Power & Physical |
| Power Supply |
12 VDC |
| Power Consumption |
≤ 6 W |
| Dimensions |
130 × 150 × 24.7 mm |
| Weight |
Approx. 0.40 kg |
| Installation |
Wall Mount |
| Environment |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
0%–90% RH, Non-condensing |
| Operating System |
Linux |
| Languages |
English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese, Korean, Japanese and others |

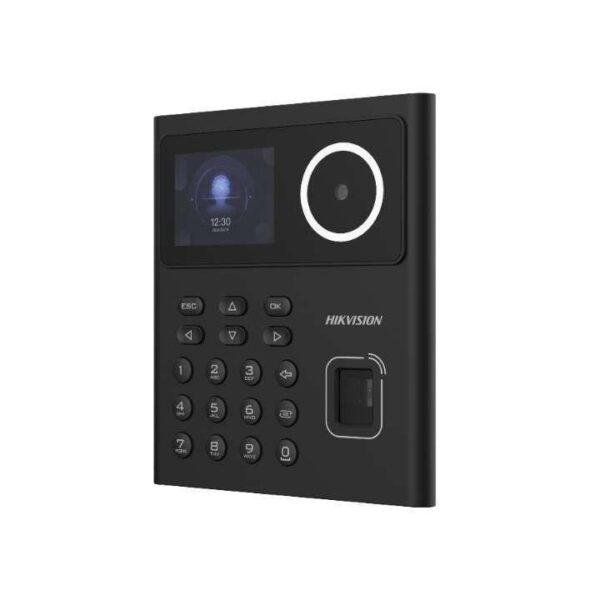

Note: The HIKVISION DS-K1T320MFWX is a compact face recognition terminal with face, fingerprint, M1 card and PIN authentication, suitable for access control and time attendance applications.
Important: The DS-K1T320MFWX uses a 13.56 MHz M1 card and includes 2.4 GHz Wi-Fi. Do not confuse it with the DS-K1T320EFWX, which uses 125 kHz card technology. Specifications are based on the official Hikvision datasheet.
