| Features |
Description |
| Product Type |
Value Series Face Recognition Terminal |
| Authentication |
Face / Fingerprint / M1 Card / PIN |
| Face Capacity |
Up to 3,000 faces |
| Fingerprint Capacity |
Up to 3,000 fingerprints |
| Card Capacity |
Up to 3,000 cards |
| Event Capacity |
Up to 150,000 events |
| Display |
4.3-inch IPS Capacitive Touch Screen |
| Communication |
TCP/IP, Wi-Fi, RS-485 and Wiegand |
| Protection |
IP65 |
| FACE RECOGNITION |
| Algorithm |
Deep Learning |
| Face Capacity |
Up to 3,000 faces |
| Recognition Distance |
>2m |
| Recognition Duration |
<0.2s per user |
| Face Anti-Spoofing |
Supported |
| Mask Detection |
Supported |
| QR Code Recognition |
Supported |
| FINGERPRINT & CARD |
| Fingerprint Capacity |
Up to 3,000 fingerprints |
| Card Type |
M1 Card |
| Card Capacity |
Up to 3,000 cards |
| Authentication Modes |
Face / Fingerprint / Card / PIN |
| DISPLAY & CAMERA |
| Screen Size |
4.3-inch |
| Screen Type |
IPS Capacitive Touch Screen |
| Screen Resolution |
272 × 480 |
| Lens |
2 Wide-angle Lenses |
| Camera Resolution |
2MP |
| Video Stream |
720P |
| Field of View |
HFOV 41.5° / VFOV 75.5° / DFOV 87° |
| STORAGE & CAPACITY |
| Face Records |
3,000 |
| Fingerprint Records |
3,000 |
| Card Records |
3,000 |
| Event Records |
150,000 |
| NETWORK & COMMUNICATION |
| Ethernet |
1 × RJ45 10/100M Self-Adaptive |
| Wi-Fi |
2.4GHz, IEEE 802.11b/g/n |
| RS-485 |
1 × RS-485, Half Duplex, Hikvision |
| Wiegand |
1 × Wiegand, Hik 26-bit / Hik 34-bit |
| Hik-Connect |
Supported |
| INTERFACE |
| Lock Control |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Tamper |
1 |
| RS-485 |
1 |
| Wiegand |
1 |
| USB |
1 |
| Built-in Access Controller |
Supported |
| AUDIO |
| Audio |
Two-way Audio |
| Audio Processing |
Noise Suppression and Echo Cancellation |
| Audio Prompt |
Supported |
| POWER & PROTECTION |
| Power Supply |
12–24VDC / 2A |
| Power Consumption |
≤10W |
| Protection |
IP65 |
| PHYSICAL & ENVIRONMENT |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Installation |
Wall Mount |

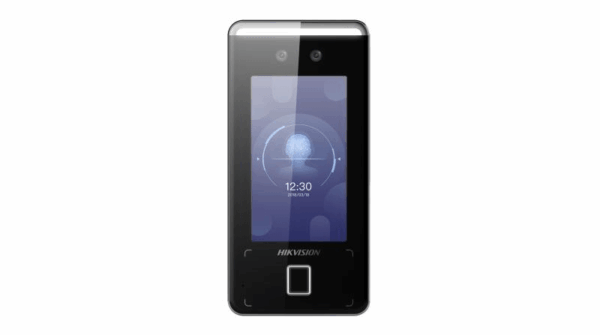

Note: The DS-K1T341CMFW is a Value Series face recognition terminal with integrated fingerprint and M1 card authentication, Wi-Fi connectivity, and built-in access control.
Important: The terminal supports a maximum of 3,000 face, fingerprint, and card records, with storage for up to 150,000 event records.
