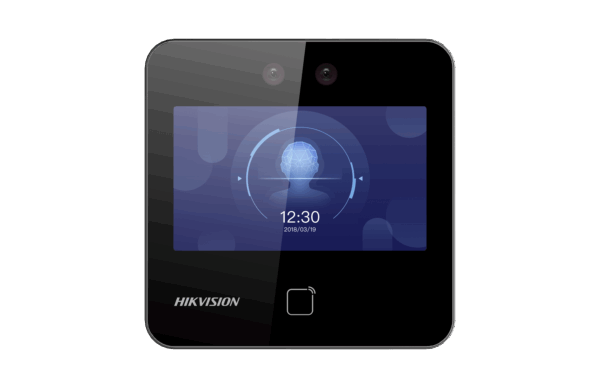

Specifications HIKVISION DS-K1T343MWX
| Features | Specifications |
|---|---|
System |
|
| Product Type | Value Series Face Access Terminal |
| Operating System | Linux |
| CPU | 800 MHz |
| RAM | 512 MB DDR3 |
| ROM | 4 GB |
Display |
|
| Screen Size | 4.3-inch LCD |
| Screen Resolution | 480 × 272 |
| Operation Method | Capacitive Touch Screen |
Face Recognition |
|
| Face Capacity | Up to 1,500 Faces |
| Face Recognition Distance | 0.3 to 1.5 m |
| Recognition Accuracy | >99% |
| Recognition Duration | <0.2 s |
| Face Anti-Spoofing | Supported |
| Face Duplicate Check | Supported |
| Multi-Factor Authentication | Supported |
Camera |
|
| Camera | 2 MP Wide-Angle Lens |
| Lens | 4 mm, F2.0 |
| Field of View | HFOV 75.5°; VFOV 41.5°; DFOV 87° |
| WDR | Supported |
| Supplement Light | IR Light |
Card Authentication |
|
| Card Type | M1 Card |
| Card Capacity | Up to 3,000 Cards |
| Card Frequency | 13.56 MHz |
| Card Reading Distance | 0–3 cm for Normal Card; 0–2 cm for Different-Shaped Card |
| Card Reading Duration | <1 s |
| M1 Card Encryption | Supported |
Audio |
|
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression | G.711U |
| Audio Bitrate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Two-Way Audio | Supported |
| Speaker Power Output | 1 W |
Network |
|
| Network Interface | 1× RJ-45, 10/100 Mbps Self-Adaptive |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n |
| Network Protocols | SDK, SIP, RTSP, ISAPI, ISUP5.0 |
Access Control Interface |
|
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| RS-485 | 1× RS-485, Half Duplex, HIKVISION |
| Wiegand | 1× Wiegand, HIK 26-bit / HIK 34-bit |
| USB | 1× USB |
Storage & Capacity |
|
| Event Capacity | Up to 150,000 Events |
| Attendance Function | Supported |
| Live View | Supported |
General |
|
| Power Supply | 12 VDC, 1 A, Power Adapter Included |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 0% to 90%, Non-Condensing |
| Dimensions | 118.4 × 118.4 × 21.8 mm |
| Installation | Wall Mounting / Base Mounting |
| Application Environment | Indoor |
| Management Platform | Hik-ProConnect and HikCentral Professional |
| Languages | English, Thai, Chinese Traditional, Japanese, Korean and Others |
Note: The HIKVISION DS-K1T343MWX is a Value Series Face Access Terminal designed for indoor access control and attendance applications. It supports face recognition, M1 card authentication and multi-factor authentication, with a capacity of up to 1,500 faces, 3,000 cards and 150,000 events. The terminal features a 4.3-inch capacitive touch screen and 2MP wide-angle camera with IR illumination. It supports 2.4 GHz Wi-Fi, TCP/IP, RS-485, Wiegand and two-way audio. The device also provides lock control, exit button, door contact and tamper interfaces, with management through Hik-ProConnect and HikCentral Professional.
