| Features |
Specifications |
| Product Type |

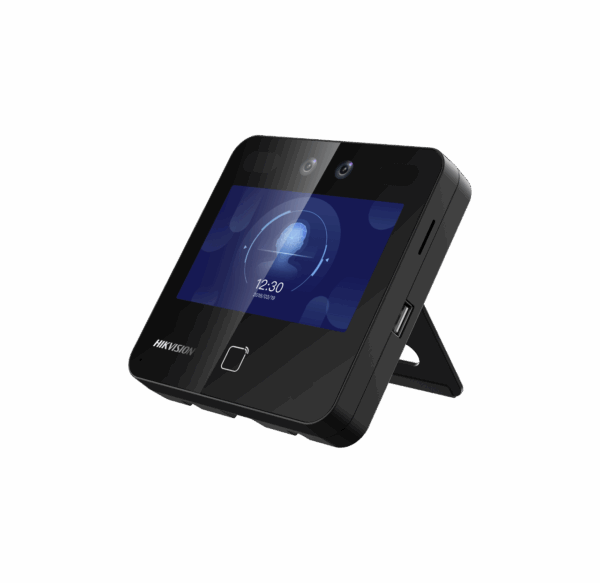

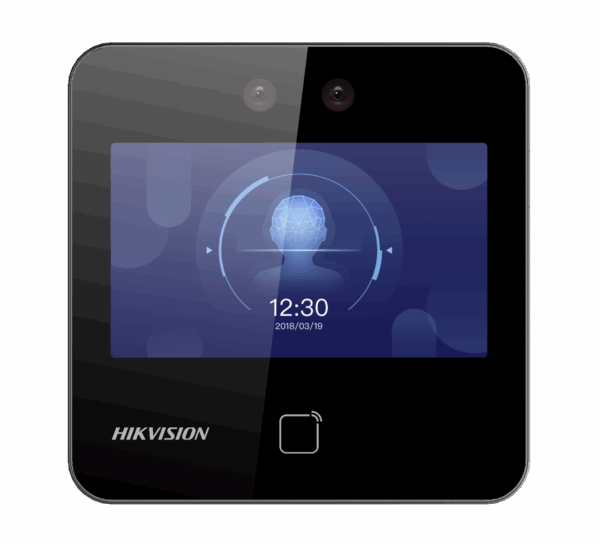

Value Series Face Recognition Access Terminal |
| Display |
4.3-inch LCD Capacitive Touch Screen |
| Display Resolution |
480 × 272 |
| Camera |
2 MP Wide-Angle Dual Lens |
| Operating System |
Linux |
| Face Capacity |
Up to 1,500 faces |
| Card Capacity |
Up to 3,000 cards |
| Event Capacity |
Up to 150,000 events |
Face Recognition & Authentication
| Features |
Specifications |
| Authentication Modes |
Face, Card and Password |
| Face Recognition Distance |
0.3 to 1.5 m |
| Recognition Duration |
Less than 0.2 s/User |
| Recognition Accuracy |
≥99% |
| Face Anti-Spoofing |
Supported |
| Face Duplicate Check |
Supported |
| Card Type |
M1 Card |
| Card Frequency |
13.56 MHz |
Access Control & Interface
| Features |
Specifications |
| Lock Control |
1 output |
| Exit Button |
1 input |
| Door Contact |
1 input |
| Tamper |
1 input |
| RS-485 |
1 × RS-485, Half Duplex |
| Wiegand |
1 × Wiegand, Hik 26-bit / Hik 34-bit |
| USB |
1 × USB |
| Network Interface |
1 × RJ-45 10/100 Mbps Self-Adaptive |
Communication & Functions
| Features |
Specifications |
| Network Communication |
TCP/IP |
| Protocol |
ISAPI, ISUP 5.0 |
| Audio |
Two-way audio with client software, indoor station and main station |
| Audio Features |
Noise suppression and echo cancellation |
| Attendance |
Attendance-only function supported |
| SIP Server |
ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs and Kamailio |
| Management Platform |
Hik-ProConnect and HikCentral Professional |
General
| Features |
Specifications |
| Power Supply |
12 VDC, 1 A (Power Adapter Included) |
| Power Consumption |
≤12 W |
| Installation |
Wall Mounting / Base Mounting |
| Application Environment |
Indoor |
| Dimensions |
118.4 × 118.4 × 21.8 mm |
| Operating Temperature |
-10°C to +40°C |
| Operating Humidity |
0–90% RH, non-condensing |
| Wi-Fi |
Not Supported |
Note: DS-K1T343MX uses an M1 card reader at 13.56 MHz and does not support Wi-Fi. The wireless version is DS-K1T343MWX.
