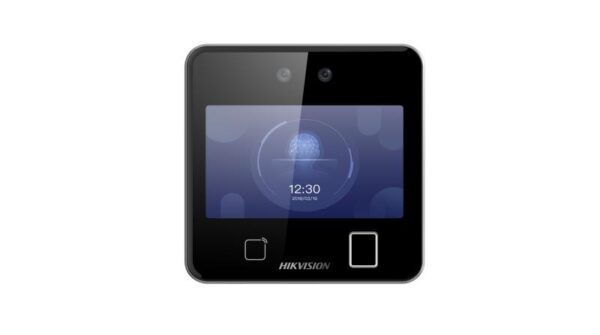

HIKVISION DS-K1T642EF

HIKVISION DS-K1T642EF

Hikvision DS-K1T642EF

Pro Face Recognition Access Terminal

  • 4.3-inch IPS capacitive touchscreen with 2MP dual cameras
  • Supports 6,000 faces, 5,000 fingerprints and 10,000 EM cards
  • Face recognition from 0.3–3m with ≥99% accuracy
  • 10/100/1000Mbps Ethernet, RS-485 and Wiegand
  • Supports QR code recognition and face anti-spoofing
  • 12VDC power with lock, exit button and door contact
หมวดหมู่: , , , ป้ายกำกับ: ,

Specifications HIKVISION DS-K1T642EF

Features Specifications
Product Type Pro Series Face Recognition Terminal
Display 4.3-inch IPS Full Screen Capacitive Touchscreen
Camera 2 × 2 MP lenses
Field of View HFOV 41.5°, VFOV 75.5°, DFOV 87°
Face Recognition Distance 0.3 to 3 m
Face Recognition Speed < 0.2 s/User
Face Recognition Accuracy > 99%
Face Capacity Up to 6,000 faces
Fingerprint Capacity Up to 5,000 fingerprints
Card Capacity Up to 10,000 cards
Event Capacity Up to 150,000 events
Card Type EM Card, 125 kHz

Authentication & Functions

Features Specifications
Authentication Methods Face, Fingerprint and Card
Fingerprint Recognition Recognition duration < 1 s
QR Code Recognition Supported
Face Anti-Spoofing Supported
Mask Detection Forced mask wearing and face mask wearing alerts
Attendance Check in, check out, break in, break out, overtime in, overtime out
Audio Prompt Supported
Time Synchronization Supported
Two-Way Audio Supported with indoor station and main station
Remote Access Remote door opening and live view via Hik-Connect

Network & Communication

Features Specifications
Wired Network 10/100/1000 Mbps self-adaptive
Wi-Fi Not supported
Communication Protocol ISUP 5.0, ISAPI, NetSDK, HikCentral Pro OpenAPI, Hik-ProConnect OpenAPI
Network Interface 1 × RJ45
RS-485 1 × RS-485
Wiegand 1 × Wiegand
USB 1 × USB

Access Control Interface

Features Specifications
Lock Output 1
Exit Button 1
Door Contact Input 1
Tamper 1
Power Interface 2-pin

General

Features Specifications
Power Supply 12 VDC, 2 A
Power Adapter Not included
Power Consumption ≤ 10 W
Working Temperature -10°C to 50°C
Working Humidity 0 to 90% RH, non-condensing
Dimensions 118 × 118 × 20 mm
Weight 0.5 kg
Installation Surface mount, optional base stand
Application Environment Indoor
Languages English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Platform Hik-ProConnect and HikCentral Professional

Note: DS-K1T642EF supports face recognition, fingerprint and 125 kHz EM card authentication with up to 6,000 faces, 5,000 fingerprints, 10,000 cards and 150,000 events.

Important: DS-K1T642EF is the wired version. Wi-Fi is not supported. The power adapter is not included.
