| Features |
Specifications |
| Product Type |
Ultra Series Wall-Mounted Face Access Terminal |
| Display |
7-inch LCD Capacitive Touch Screen |
| Camera |
2MP Dual Lens |
| Face Recognition |
0.3–3m, <0.2s/User, Accuracy ≥99% |
| Face Capacity |
50,000 faces |
| Card Capacity |
50,000 cards |
| Event Capacity |
50,000 events |
| Card Type |
Mifare 1 Card |
| Card Frequency |
13.56MHz |
| QR Code Recognition |
Supported |
| Face Anti-Spoofing |
Supported |
Display & Camera
| Features |
Specifications |
| Screen Size |
7-inch |
| Display Type |
LCD |
| Operation Method |
Capacitive Touch Screen |
| Camera |
2MP Dual Lens |
| Lens |
Visible Light Lens ×1, 850nm Infrared Lens ×1 |
| Field of View |
HFOV 75.5°, VFOV 41.5°, DFOV 87° |
| Audio |
Noise Suppression and Echo Cancellation |
Face Recognition & Authentication
| Features |
Specifications |
| Face Recognition Distance |
0.3–3m |
| Recognition Duration |
<0.2s/User |
| Recognition Accuracy |
≥99% |
| Face Capacity |
50,000 |
| Card Capacity |
50,000 |
| Event Capacity |
50,000 |
| Authentication Mode |
Face, Card, Face + Card |
| Card Type |
Mifare 1 Card |
| Card Reading Frequency |
13.56MHz |
| QR Code Recognition |
Supported |
| Face Anti-Spoofing |
Supported |
| Audio Prompt |
Supported |
Network & Communication
| Features |
Specifications |
| Network Interface |
1 × RJ45 10/100/1000M Self-Adaptive |
| Wi-Fi |
Not Supported |
| Communication Protocol |
ISUP 5.0, SDK, RTSP, ISAPI |
| Hik-Connect |
Supported |
| HikCentral Pro OpenAPI |
Supported |
| Hik-ProConnect OpenAPI |
Supported |
| RS-485 |
1 × RS-485, Half Duplex |
| Wiegand |
1 × Wiegand |
| USB |
1 × USB |
Access Control Interface
| Features |
Specifications |
| Lock Output |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Alarm Input |
2 |
| Alarm Output |
1 |
| RS-485 |
1 |
| Wiegand |
1 |
| Two-Way Audio |
Supported with indoor station and main station |
| External Card Reader |
Supported via RS-485 |
| Secure Door Control Unit |
Supported via RS-485 |
Attendance
| Features |
Specifications |
| Attendance Status |
Check In, Check Out, Break In, Break Out, Overtime In, Overtime Out |
| Attendance Status Count |
6 statuses |
| Configuration |
Web Client |
| Remote Door Opening |
Supported via Hik-Connect |
| Voice Prompt |
Self-defined authentication result prompt |
General
| Features |
Specifications |
| Power Supply |
12VDC, 2A |
| Working Temperature |
-10°C to +50°C |
| Working Humidity |
0–90%, Non-Condensing |
| Installation |
Surface Mounting |
| Application Environment |
Indoor |
| Dimensions |
185.8 × 103.36 × 20.7mm |
| Languages |
English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil) |
| Platform |
Hik-ProConnect and HikCentral Professional |

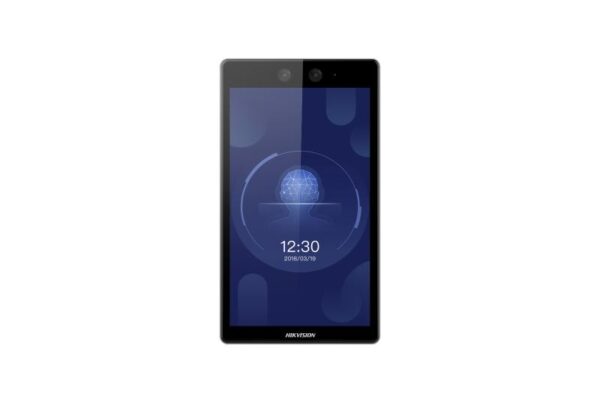

Note: The DS-K1T672M supports face recognition, Mifare 1 card authentication, QR code recognition, attendance functions and two-way audio.
Important: The DS-K1T672M uses Mifare 1 cards at 13.56MHz. It does not support Wi-Fi; network connectivity is provided through Gigabit Ethernet.
