| Features |
Specifications |
| Product Type |

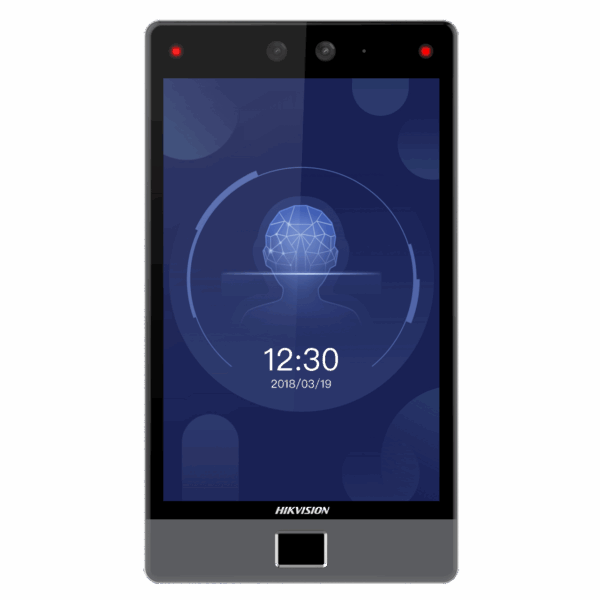

Ultra Series Wall-Mounted Face Access Terminal |
| Display |
8-inch LCD Capacitive Touch Screen |
| Camera |
2 × 2 MP Dual-Lens Camera |
| Field of View |
HFOV 88°, VFOV 44°, DFOV 108° |
| Face Recognition Distance |
0.3 to 3 m |
| Face Recognition Speed |
< 0.2 s/user |
| Face Recognition Accuracy |
≥ 99% |
| Face Anti-Spoofing |
Supported |
Authentication
| Features |
Specifications |
| Authentication Methods |
Face, Fingerprint and Card |
| Face Capacity |
Up to 100,000 faces |
| Fingerprint Capacity |
Up to 10,000 fingerprints |
| Card Capacity |
Up to 100,000 cards |
| Event Capacity |
Up to 150,000 events |
| Card Type |
Felica, DESFire and M1 |
| QR Code Recognition |
Supported, recognized QR code size larger than 6 × 6 cm |
Interface
| Features |
Specifications |
| Network Interface |
1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| Lock Control |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Alarm Input |
2 |
| Alarm Output |
1 |
| Tamper |
1 |
| RS-485 |
1 × RS-485, Half Duplex |
| Wiegand |
1 × Wiegand, Hik 26-bit / Hik 34-bit |
| USB |
1 × USB |
Communication & Management
| Features |
Specifications |
| Communication |
TCP/IP, RS-485, Wiegand, 3G/4G |
| Protocol |
ISAPI, ISUP 5.0 |
| Hik-Connect |
Supported |
| Two-Way Audio |
Supported with indoor station and master station |
| Management |
Web Client and Mobile Client |
| Attendance |
Customizable attendance status names |
Power & General
| Features |
Specifications |
| Power Supply |
12 to 24 VDC, 3 A |
| Protective Level |
IP65 |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
0% to 90%, non-condensing |
| Dimensions |
127.3 × 232.1 × 23.5 mm |
Note: The DS-K1T680DFG supports Face, Fingerprint and Card authentication with high-capacity biometric and event storage.
Important: Biometric recognition is not 100% applicable to all anti-spoofing environments. For higher security requirements, Hikvision recommends using multiple authentication methods.
