| Features |
Specifications |
| Product Type |

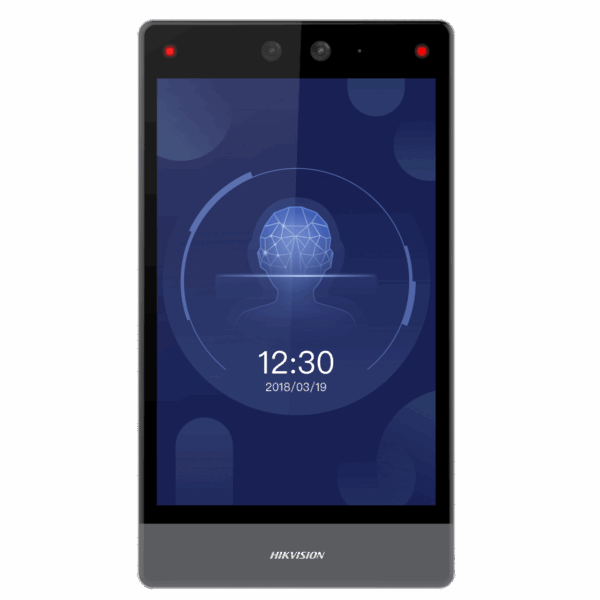

Ultra Series Wall-Mounted Face Access Terminal |
| Display |
8-inch LCD, 1280 × 800 |
| Operation |
Capacitive Touch Screen |
| Camera |
2 × 2MP cameras |
| Face Recognition |
0.3–3m, <0.2s/User, accuracy ≥99% |
| Authentication |
Face and Card |
| Face Capacity |
100,000 faces |
| Card Capacity |
100,000 cards |
| Event Capacity |
150,000 events |
| QR Code |
Supported, recognized QR code image >6 × 6cm |
| Protection |
IP65 |
Display & Camera
| Features |
Specifications |
| Screen Size |
8-inch |
| Screen Resolution |
1280 × 800 |
| Screen Type |
LCD |
| Touch Screen |
Capacitive Touch Screen |
| Camera Lens |
2 lenses |
| Camera Resolution |
2MP × 2 |
| Field of View |
HFOV 88°, VFOV 44°, DFOV 108° |
| WDR |
≥120dB |
| Video Standard |
PAL (Default), NTSC |
Authentication
| Features |
Specifications |
| Face Recognition Distance |
0.3–3m |
| Face Recognition Speed |
<0.2s/User |
| Face Recognition Accuracy |
≥99% |
| Face Capacity |
100,000 |
| Card Capacity |
100,000 |
| Event Capacity |
150,000 |
| Card Type |
M1, DESFire, Felica |
| Card Reading Distance |
0–5cm |
| Card Reading Speed |
<1s |
| Face Anti-Spoofing |
Supported |
| QR Code Recognition |
Supported |
Network & Communication
| Features |
Specifications |
| Network Interface |
1 × RJ45 10/100/1000M self-adaptive |
| Wi-Fi |
Not Supported |
| 3G/4G |
Supported |
| RS-485 |
1 × RS-485, Half Duplex, Hikvision |
| Wiegand |
1 × Wiegand, Hik 26bit/Hik 34bit |
| USB |
1 × USB |
| Communication Protocols |
TCP/IP, SIP, RTSP, ISAPI, ISUP 5.0 |
| Hik-Connect |
Supported |
Access Control Interface
| Features |
Specifications |
| Lock Control |
1 |
| Exit Button |
1 |
| Door Contact Input |
1 |
| Alarm Input |
2 |
| Alarm Output |
1 |
| Tamper |
1 |
| Two-Way Audio |
Supported with indoor station and master station |
General
| Features |
Specifications |
| Power Supply |
12–24VDC, 3A |
| Power Supply Method |
12VDC/24VDC Power Adapter |
| Working Temperature |
-30°C to +60°C |
| Working Humidity |
0–90%, non-condensing |
| Protection Rating |
IP65 |
| Dimensions |
127.3 × 232.1 × 23.5mm |
| Supported Languages |
English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, Indonesian |
Note: The DS-K1T680DG supports face recognition, card authentication, QR code recognition and multi-factor authentication for access control applications.
Important: The DS-K1T680DG does not support Wi-Fi. Network connectivity is provided through Gigabit Ethernet and 3G/4G communication.
