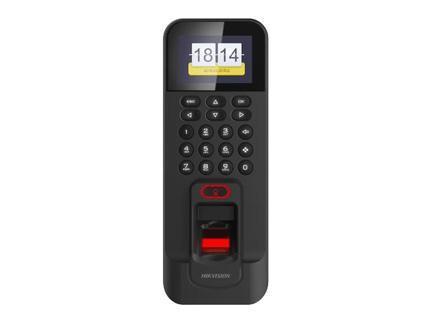

HIKVISION DS-K1T804EF

HIKVISION DS-K1T804EF

Fingerprint & EM Card Access Control Terminal

  • Optical fingerprint recognition with up to 3,000 fingerprints
  • Built-in EM card reader supporting up to 3,000 cards
  • Stores up to 100,000 event records and 150,000 attendance records
  • 2.4-inch 320 × 240 LCD display with keypad
  • TCP/IP, RS-485, Wiegand, USB 2.0 and Wi-Fi communication
  • 12VDC power with IP42 protection and tamper alarm
หมวดหมู่: , , , ป้ายกำกับ:

Specifications HIKVISION DS-K1T804EF

Features Description
Product Type Fingerprint Access Control Terminal
Authentication Fingerprint + EM Card
Fingerprint Capacity Up to 3,000 fingerprints
Card Capacity Up to 3,000 valid cards
Event Storage Up to 100,000 event records
Attendance Storage Up to 150,000 attendance records
Display 2.4-inch 320 × 240 LCD-TFT
Communication TCP/IP, Wi-Fi, RS-485 and Wiegand
Protection IP42, tamper-proof
AUTHENTICATION
Fingerprint Recognition Optical Fingerprint Recognizer
Fingerprint Capacity Up to 3,000 fingerprints
Fingerprints per Person Up to 10 fingerprints
Fingerprint Matching 1:1 and 1:N, N = 3,000
Fingerprint Authentication Time <1 second
FAR ≤0.001%
FRR ≤0.01%
Card Type EM Card
Card Capacity Up to 3,000 valid cards
Card Reading Distance 0–5cm
Card Response Time <1 second
ATTENDANCE & ACCESS CONTROL
Attendance Management Integrated access control and attendance management
Attendance Status Check In / Check Out / Break In / Break Out / Overtime In / Overtime Out
Normal Shifts Up to 32
Man-Hour Shifts Up to 32
Attendance Holidays Up to 32 schedules
Access Control Holidays Up to 128 schedules
Attendance Reports Automatic attendance report generation
Operation Mode Standalone or software-managed
STORAGE
Valid Cards Up to 3,000
Event Records Up to 100,000
Attendance Records Up to 150,000
Data Export Attendance and card data export via USB flash drive
DISPLAY & INTERFACE
LCD Screen 2.4-inch 320 × 240 LCD-TFT Display
Keyboard Backlit keypad
LED Indicator Power / Status, Red / Green
Audio 1 Buzzer and 1 Loudspeaker
USB USB 2.0 Type-A
Reset Key 1
NETWORK & COMMUNICATION
Communication Interface TCP/IP, RS-485, Wiegand Input/Output
Ethernet 10/100Mbps, self-adaptive
Wi-Fi Supported
RS-485 19200bps-N-8-1
Wiegand Input Wiegand 26/34
Wiegand Output Wiegand 26/34
Secure Door Control RS-485 connection to external secure door control unit
INPUT & OUTPUT
Input Interface Exit Button ×1 / Door Contact ×1 / Alarm Input ×1
Output Interface Lock Relay Output ×1 / Alarm Output ×1
External Card Reader Standard Wiegand 26/34
Alarm Tamper Alarm / Duress Alarm
Doorbell Supports third-party doorbell
POWER & ENVIRONMENT
Power Supply 12VDC / 2A
Operating Temperature -10°C to +55°C
Operating Humidity 10%–90% RH, non-condensing
Water Protection IP42
Tamper Protection Supported
PHYSICAL
Dimensions 205 × 76.5 × 37mm
Installation Surface Mounting / Metal Door Mounting / Gang Box
Standard Color Black
Optional Colors Gold / Silver / White

Note: The DS-K1T804EF combines fingerprint authentication and EM card reading with access control and attendance management. It supports up to 3,000 users, 3,000 fingerprints and 100,000 event records.

Important: The DS-K1T804EF is an older/discontinued model in some markets. Hikvision has introduced newer replacement models such as the DS-K1T804AEF, so availability should be checked before ordering.
