| Features |
Specifications |
| Product Type |
Pro Series Access Controller |
| Door Control |
2 Doors |
| Communication |
TCP/IP, RS-485, Wiegand |
| Wiegand Interface |
W26 / W34 |
| Card Reader |
4 × RS-485 Readers + 4 × Wiegand Readers |
| Card Capacity |
100,000 Cards |
| Event Capacity |
300,000 Events |
| Processor |
32-bit |
| Built-in Clock |
Supported |
| Offline Operation |
Supported |
| Data Retention |
Data Permanently Saved After Power Off |
Interface
| Features |
Specifications |
| Lock Control |
2 |
| Exit Button |
2 |
| Door Contact Input |
2 |
| Alarm Input |
4 |
| Alarm Output |
4 |
| RS-485 |
4 |
| Wiegand |
4 |
Access Control Functions
| Features |
Specifications |
| Anti-Passback |
Supported |
| Multi-Door Interlocking |
Supported |
| Multi-Card Authentication |
Supported |
| First Person Function |
Supported |
| Super Card |
Supported |
| Super Password |
Supported |
| Duress Card & Password |
Supported |
| Alarm Event Upload |
Supported |
| Remote Door Control |
Supported |
| Online Upgrade |
Supported |
| Time Synchronization |
NTP, Manual and Automatic |
| Standby Battery |
Supported |
Power & General
| Features |
Specifications |
| Power Supply |
12VDC |
| Power Consumption |
≤100W With Load; ≤4W Without Load |
| Operating Temperature |
-20°C to +65°C |
| Operating Humidity |
10% to 90% RH, Non-condensing |
| Dimensions |
236 × 185 × 37mm |
| Installation |
Wall Mount |

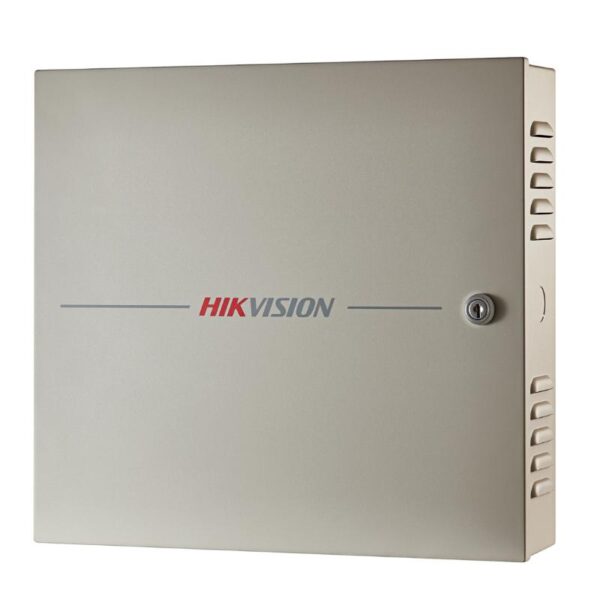

Note: The DS-K2602T supports two-door access control with multiple card reader, alarm and door control interfaces.
Important: Install and configure the access controller according to the manufacturer’s instructions and applicable access control regulations.
