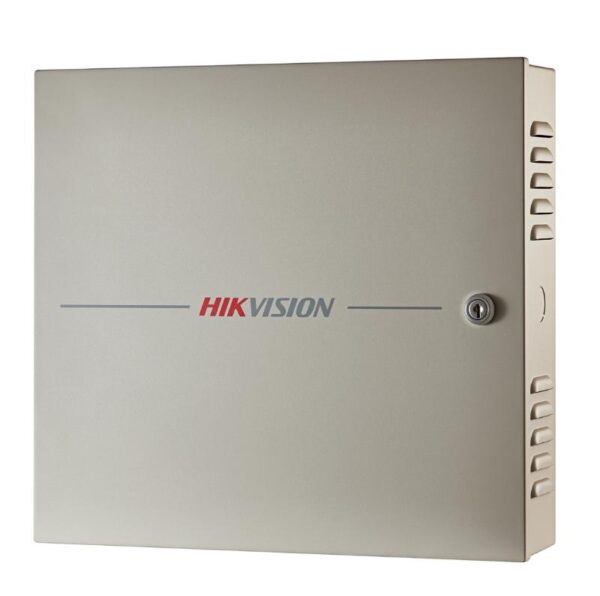

Specifications Hikvision DS-K2604T
| Features | Specifications |
|---|---|
| Product Type | Pro Series Access Controller |
| Door Control | 4 Doors |
| Communication | TCP/IP, RS-485, Wiegand |
| Wiegand Interface | W26 / W34 |
| Card Reader | 8 × RS-485 Readers + 4 × Wiegand Readers |
| Card Capacity | 100,000 Cards |
| Event Capacity | 300,000 Events |
| Processor | 32-bit High-Speed Processor |
| Offline Operation | Supported |
| Data Retention | Data Permanently Saved After Power Off |
Interface
| Features | Specifications |
|---|---|
| Network Interface | 1 × TCP/IP |
| Lock Control | 4 |
| Exit Button | 4 |
| Door Contact Input | 4 |
| Alarm Input | 4 |
| Alarm Output | 4 |
| RS-485 | 8 |
| Wiegand | 4 |
Access Control Functions
| Features | Specifications |
|---|---|
| Multi-Door Interlocking | Supported |
| Anti-Passback | Supported |
| Multi-Card Authentication | Supported |
| First Person Function | Supported |
| Super Card | Supported |
| Super Password | Supported |
| Duress Card & Password | Supported |
| Alarm Event Upload | Supported |
| Remote Door Control | Supported |
| Online Upgrade | Supported |
| Time Synchronization | NTP, Manual and Automatic |
| Standby Battery | Supported |
Power & General
| Features | Specifications |
|---|---|
| Power Supply | 12VDC |
| Power Consumption | ≤100W With Load; ≤4W Without Load |
| Operating Temperature | -20°C to +65°C |
| Operating Humidity | 10% to 90% RH, Non-condensing |
| Dimensions | 236 × 185 × 37mm |
| Installation | Wall Mount |
Note: The DS-K2604T is designed for four-door access control applications and supports multiple authentication, interlocking and alarm linkage functions.
Important: Install and configure the access controller according to the manufacturer’s instructions and applicable access control regulations.
