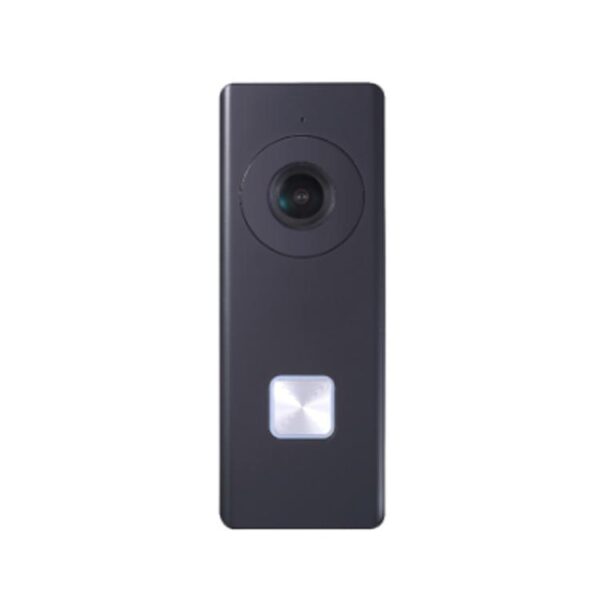

Specifications Hikvision DS-KB6403-WIP
| Features | Specifications |
|---|---|
Product Information |
|
| Product Type | Wi-Fi Video Doorbell |
| Processor | High-Performance Embedded SOC Processor |
| Operating System | Embedded Linux |
| Video Intercom | Supports audiovisual communication with mobile application |
Camera |
|
| Image Sensor | 2 MP HD Colorful CMOS Camera |
| Light Sensitivity | Low Illumination |
| Lens | 1.96 mm, F2.2 |
| Field of View | 180° Horizontal, 96° Vertical |
| Wide Dynamic Range | WDR |
Video |
|
| Video Compression | H.264 |
| Video Streaming | Dual Stream |
| Main Stream | 1080p |
| Sub Stream | VGA |
| Anti-Flicker | 50 Hz, 60 Hz |
Audio |
|
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Communication | Two-Way Full Duplex |
| Audio Compression | G.711 U |
| Audio Bit Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Voice Prompt | Supported |
| Volume Configuration | Configurable via Mobile App |
Night Vision |
|
| Supplement Light | Self-Adaptive IR Supplement |
| IR Distance | Up to 5 m |
| IR Wavelength | 940 nm |
Network |
|
| Wireless Interface | Built-in Wireless Network Card |
| Wi-Fi | 2.4 GHz |
| Network Protocol | TCP/IP, RTSP |
| Mobile Application | Hik-Connect |
Functions & Storage |
|
| Motion Detection | Supported |
| Motion Detection Alarm | Supported |
| Video Recording | Supported |
| TF Card | Up to 128 GB |
| Recording & Playback | Supported via TF Card |
| NVR Support | Supports adding the doorbell to compatible Hikvision NVRs for preview, recording and playback |
| Call Button | 1 × Backlit Call Button |
| Reset Button | 1 × Reset Button |
| Faceplate | Replaceable |
General |
|
| Material | Plastic Cover |
| Ingress Protection | IP54 |
| Power Supply | 12 VDC |
| Power Consumption | Max. 0.6 A |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | 10% to 90% |
| Dimensions | 122.4 × 45.9 × 28.1 mm |
| Certifications | RoHS, REACH, WEEE, C-TICK, FCC, CE, CB, ICES-003, UL |
Note: The Hikvision DS-KB6403-WIP is a Wi-Fi Video Doorbell featuring a 2MP HD camera with an ultra-wide 180° horizontal field of view. It supports 1080p video, two-way full-duplex audio, self-adaptive IR up to 5 m, motion detection and TF card storage up to 128 GB. The doorbell connects through 2.4 GHz Wi-Fi and can be managed through the Hik-Connect mobile application. It also supports compatible Hikvision NVRs for video preview, recording and playback.
