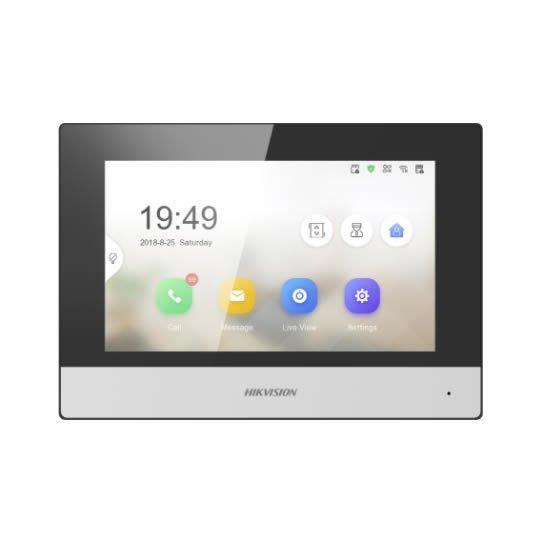

Specifications Hikvision DS-KH6320-TE1
| Features | Specifications |
|---|---|
Product Information |
|
| Product Type | IP Video Intercom Indoor Station |
| Series | KH6 Series |
| Operating System | Embedded Linux |
| Processor | Embedded High-Performance Processor |
| RAM | 128 MB |
| Flash | 32 MB |
Display |
|
| Display Size | 7-inch |
| Display Type | Colorful TFT Screen |
| Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen |
Audio |
|
| Audio Input | 1 × Built-in Omnidirectional Microphone |
| Audio Output | 1 × Built-in Loudspeaker |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Volume Adjustment | Adjustable |
Capacity |
|
| Message Capacity | With TF Card: 200 Captured Pictures and 200 Alarm Records |
| Notice Capacity | 200 |
| Linked Indoor Extensions | Up to 16 |
| Linked Door Stations | Up to 17 |
| Linked Network Cameras | Up to 16 |
Network |
|
| Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | Not Supported |
| Bluetooth | Not Supported |
Interfaces |
|
| Alarm Input | 8 |
| RS-485 | 1 |
| TF Card | Up to 128 GB, SD 2.0 or Lower |
| Alarm Output | 2 Relay Outputs, Max. 30 VDC / 0.3 A |
Video Intercom Functions |
|
| Live View | Door Stations and Linked Network Cameras |
| Remote Unlocking | Supported via Client Software or Mobile Client |
| Message Storage | Supported via TF Card |
| Picture Capture | Supported |
| Alarm Linkage | Supported |
Power & General |
|
| Power Supply | IEEE 802.3af Standard PoE / 12 VDC 1 A |
| Power Consumption | ≤ 6 W |
| Installation | Surface Mounting |
| Application Environment | Indoor |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90%, Non-Condensing |
| Dimensions | 200 × 140 × 15.1 mm |
| Net Weight | Approx. 350 g |
Note: The Hikvision DS-KH6320-TE1 is a 7-inch IP Video Intercom Indoor Station with a 1024 × 600 capacitive touch screen. It supports two-way audio, remote door unlocking, live view from door stations and linked network cameras, 8 alarm inputs, 2 relay outputs and TF card storage. The indoor station supports up to 16 indoor extensions, 17 door stations and 16 linked network cameras. It can be powered by standard IEEE 802.3af PoE or 12 VDC.
