Specifications Hikvision DS-KH8520-WTE1
| Features | Specifications |
|---|---|
Product Information |
|
| Product Type | Network Video Intercom Indoor Station |
| Operating System | Embedded Linux |
| CPU | Embedded Processor |
| RAM | 128 MB |
| Flash | 32 MB |
Display |
|
| Display Size | 10.1-inch |
| Display Type | Colorful TFT Screen |
| Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen |
Audio |
|
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression | G.711 U |
| Audio Bit Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Volume Adjustment | Adjustable |
Capacity |
|
| Linked IPC | Up to 16 |
| Linked Indoor Extensions | Up to 16 |
| Linked Door Stations | Up to 17 |
| Notices | Up to 200 |
Network |
|
| Wired Network | 10/100 Mbps Self-Adaptive Ethernet |
| Wi-Fi | IEEE 802.11 b/g/n |
| Network Protocol | TCP/IP, SIP, RTSP |
| Network Interface | 1 × RJ-45 10/100 Mbps |
Interfaces |
|
| Alarm Input | 8 |
| Alarm Output | 2 Relay Outputs |
| RS-485 | 1 |
| TF Card | Up to 128 GB, SD 2.0 or Lower |
| USB | Not Supported |
| Tamper | Not Supported |
Video Functions |
|
| Live View | Door Stations and Linked Network Cameras |
| Remote Unlocking | Supported via Client Software or Mobile App |
| Message Storage | Supported via TF Card |
| Picture Capture | Supported via TF Card |
Power & General |
|
| Power Supply | IEEE 802.3af Standard PoE / 12 VDC 1A |
| Power Consumption | ≤ 6 W |
| Installation | Surface Mounting |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% |
| Application Environment | Indoor |
| Dimensions | 254 × 166 × 22.55 mm |
| Weight | Approx. 660 g Without Packaging |

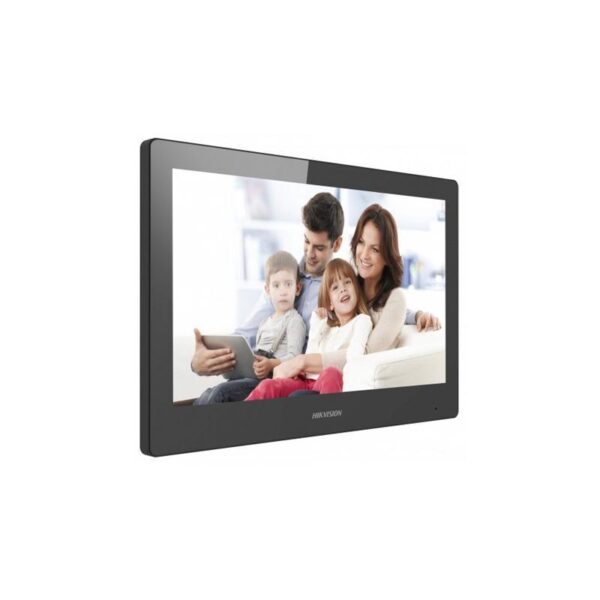

Note: The Hikvision DS-KH8520-WTE1 is a 10.1-inch network video intercom indoor station with a 1024 × 600 capacitive touch screen. It supports Wi-Fi, standard PoE and 12 VDC power, two-way audio, remote door unlocking, live view of door stations and linked cameras, 8 alarm inputs, 2 relay outputs and TF card storage. The indoor station can link up to 16 network cameras, 16 indoor extensions and 17 door stations.
