Specifications Hikvision DS-KM8301
| Features | Specifications |
|---|---|
Product Information |
|
| Product Type | Video Intercom Master Station |
| Processor | High-Performance Embedded SOC Processor |
| Operating System | Embedded Linux |
| Management Functions | Video Intercom, Alarm Processing and Remote Door Unlocking |
| Installation | Desktop / On-Table Installation; Optional Wall Mounting |
Camera & Video |
|
| Camera | 0.3 MP CMOS |
| Video Compression | H.264 |
| Video Resolution | 1280 × 720, 704 × 576 |
| Video Frame Rate | 25 fps, 12.5 fps |
Display |
|
| Display Size | 7-inch |
| Display Type | Colorful TFT LCD |
| Display Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen, Touch Keys and Physical Buttons |
| User Interface | Flattened UI Operation Interface |
Audio |
|
| Audio Input | Built-in Omnidirectional Microphone and External Handset |
| Audio Output | Built-in Loudspeaker and External Handset |
| Audio Compression | G.711 U |
| Audio Bit Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Hands-Free Mode | Supported |
Network |
|
| Ethernet | 10/100/1000 Mbps Self-Adaptive |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps |
| Network Protocol | TCP/IP, RTSP |
| SIP Server | Supported |
Interfaces |
|
| RS-485 | 2 × RS-485 Half-Duplex Ports |
| USB | 1 × USB Interface for U-Disk |
| Alarm Input | 4 × On-Off Inputs |
| On-Off Output | 2 × On-Off Outputs |
| Relay Output | 2 × Relay Outputs |
General |
|
| Material | Plastic |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 10 W |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% |
| Dimensions | 436 × 215 × 67 mm |
| Certification | FCC, IC, CE, C-TICK, RoHS, REACH, WEEE |

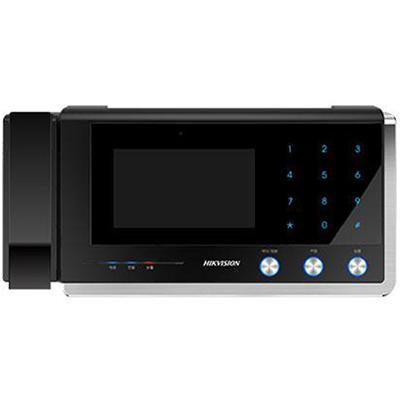

Note: The Hikvision DS-KM8301 is a Video Intercom Master Station designed for centralized management of video intercom systems. It features a 7-inch 1024 × 600 TFT LCD, 0.3 MP camera, two-way audio, alarm processing and remote door unlocking. The master station provides Gigabit Ethernet, 2 RS-485 ports, 4 alarm inputs, 2 on-off outputs and 2 relay outputs. It supports desktop installation and can also function as a management center and SIP server.
