Specifications Hikvision DS-KV8213-WME1
| Features | Specifications |
|---|---|
Product Information |
|
| Product Type | Video Intercom Villa Door Station |
| Operation Method | Two-Button |
| Operating System | Embedded Linux |
| RAM | 256 MB |
| Flash | 32 MB |
Camera |
|
| Camera | 2 MP HD Camera |
| Resolution | 1920 × 1080 |
| Night Vision | IR Supplement, up to 3 m |
| WDR | True WDR |
| BLC | Supported |
| DNR | Supported |
| Field of View | Horizontal: 129°, Vertical: 75° |
| Video Compression | H.264 |
| Main Stream | 1080p @ 30 fps, 720p @ 25 fps |
| Sub Stream | D1 @ 25 fps |
| Motion Detection | Supported |
Audio |
|
| Audio Intercom | Two-Way Audio Communication |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression | G.711 U |
| Audio Bit Rate | 64 Kbps |
| Audio Functions | Noise Suppression and Echo Cancellation |
Access Control |
|
| Card Type | MIFARE Card |
| Card Frequency | 13.56 MHz |
| Card Capacity | Up to 10,000 Cards |
| User Capacity | Up to 2,000 Users |
| Door Control | 2 Lock Control Outputs |
| Exit Button | 2 Inputs |
| Door Contact | 2 Inputs |
| Relay | 2 |
| Access Methods | Card, Indoor Station, Software and App |
Network & Wireless |
|
| Wired Network | 10/100 Mbps Ethernet |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | 2.4 GHz Wi-Fi, IEEE 802.11 b/g/n |
| Wi-Fi Bandwidth | 20 / 40 MHz |
| Wi-Fi Frequency | 2.4 to 2.4835 GHz |
| Linked Indoor Stations | Up to 2 Main Indoor Stations |
| Linked Sub Door Stations | Up to 16 |
Interfaces |
|
| RS-485 | 1 |
| Alarm Input | 4 |
| TF Card | 1, up to 128 GB |
| Debugging Port | 1 |
| Tamper Switch | 1 |
| Physical Buttons | 2 |
| Grounding | 1 |
General |
|
| Power Supply | IEEE 802.3af Standard PoE / 12 VDC |
| Power Consumption | < 10 W |
| Protection Level | IP65, IK08 |
| Working Temperature | -40°C to 53°C |
| Working Humidity | 10% to 95% |
| Installation | Surface Mounting / Flush Mounting |
| Material | Metal |
| Dimensions | 174 × 91 × 29 mm |

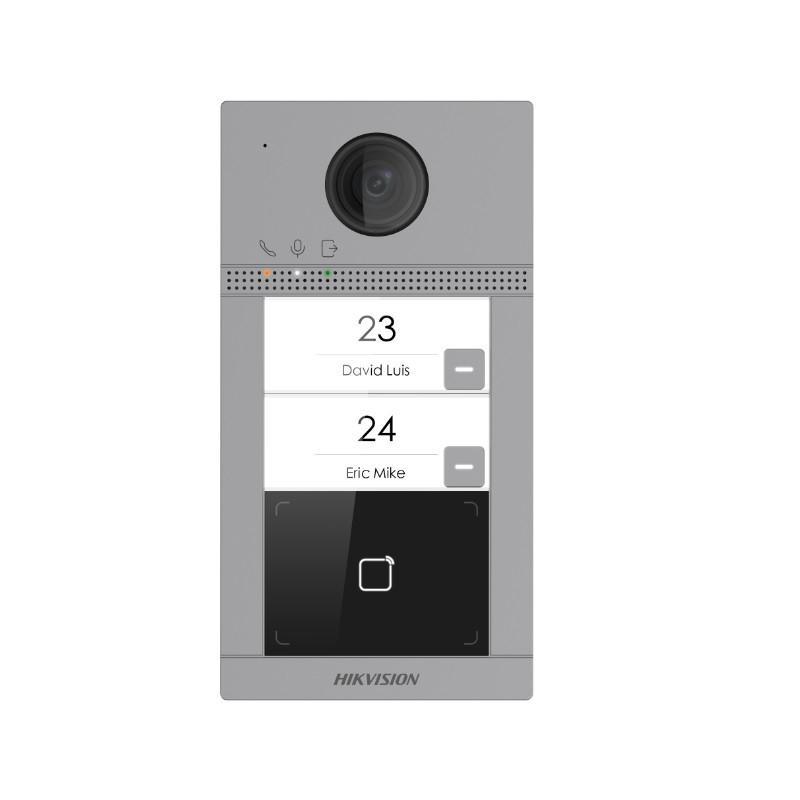

Note: The Hikvision DS-KV8213-WME1 is a two-button IP Video Intercom Villa Door Station with a 2 MP HD camera, 129° horizontal field of view, IR supplement up to 3 m and two-way audio communication. It supports MIFARE cards at 13.56 MHz, up to 10,000 cards and 2,000 users. The device provides two lock controls, two exit-button inputs, two door-contact inputs, Wi-Fi, standard PoE and IP65/IK08 protection.
