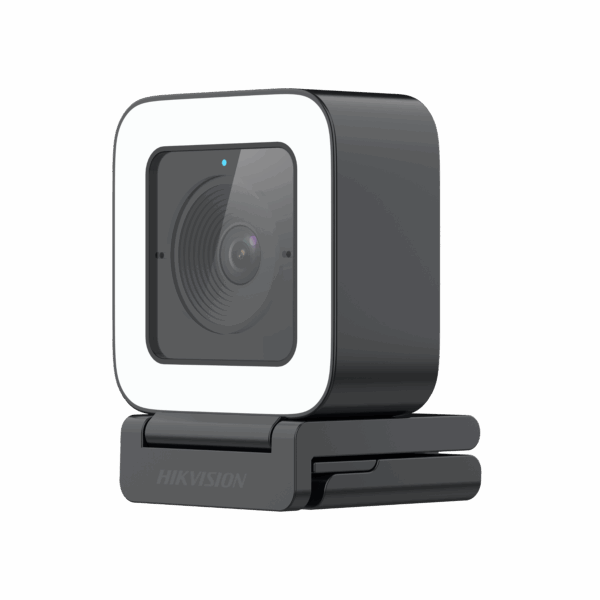

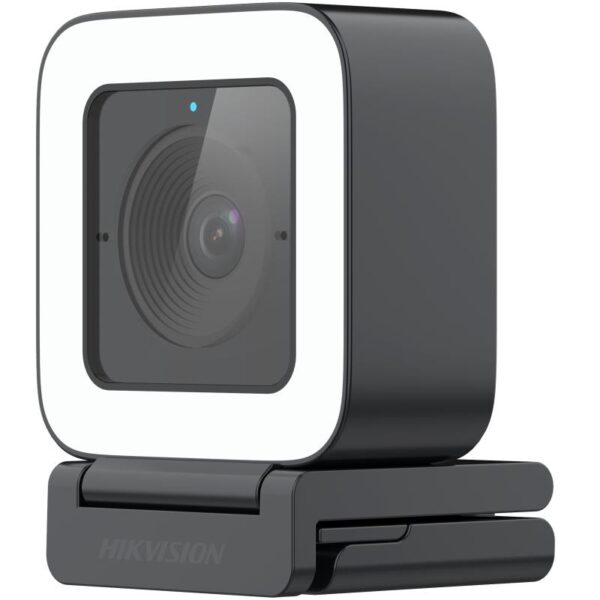

Specifications Hikvision DS-UL8
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 4K Live Web Camera |
| Image Sensor | 8 MP CMOS |
| Signal System | PAL / NTSC |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | 0.1 Lux @ F1.2, AGC ON |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Digital Zoom | Yes |
| Supplement Light | Built-in |
Lens |
|
| Lens Type | Fixed Focal Lens with Auto Focus |
| Focal Length | 3.6 mm |
| Lens Mount | M8 |
| Horizontal FOV | 83° |
| Vertical FOV | 53° |
| Diagonal FOV | 91° |
| Object Distance | 5 cm to ∞ |
Video |
|
| USB 3.0 MJPG | 3840 × 2160 @ 30/25 fps; 2560 × 1440 @ 30/25 fps; 1920 × 1080 @ 30/25 fps |
| USB 3.0 Additional Resolutions | 1280 × 960, 1280 × 720, 640 × 480 and 640 × 360 @ 30/25 fps |
| USB 3.0 YUV | 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480 and 640 × 360 @ 30/25 fps |
| USB 2.0 MJPG | 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480 and 640 × 360 @ 30/25 fps |
| USB 2.0 YUV | 1920 × 1080 @ 5 fps; 1280 × 960 @ 5 fps; 1280 × 720 @ 10 fps; 640 × 480 and 640 × 360 @ 30/25 fps |
Audio |
|
| Microphone | Built-in Microphone |
| Audio Sampling Rate | 48 kHz |
Interface |
|
| Video Output | USB 2.0 / USB 3.0 |
| Connector | Type-C |
| Audio Input | Built-in Microphone |
| Cable Length | 2 m |
| Plug & Play | Yes, no driver installation required |
Angle Adjustment |
|
| Pan | 0° |
| Tilt | 0° to 90° |
| Rotation | 0° |
System Compatibility |
|
| Windows | Windows 7 / 8 / 10 / 11 |
| Android | Android 8.1 and above |
| Linux | Linux 4.14 and above |
| macOS | macOS 10.12 and above |
| Chrome OS | Supported |
| High Resolution Support | Resolution above 1080P requires Windows 8.1 or later |
General |
|
| Material | Plastic |
| Power Supply | DC 5V ± 5% via USB |
| Power Consumption | Maximum 4.5 W |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 90% or less, non-condensing |
| Dimensions | 47.9 × 59.9 × 75.4 mm |
| Weight | Approx. 171 g |
Accessories |
|
| Package Contents | Camera, USB Cable, Quick Start Guide, Bracket and Tripod |
Note: The Hikvision DS-UL8 is a 4K live web camera with an 8MP CMOS sensor and 3840 × 2160 resolution. It features a 3.6 mm auto-focus lens, built-in supplemental light, built-in microphone and Type-C USB interface supporting USB 2.0 and USB 3.0. The camera supports 4K video up to 30/25 fps through USB 3.0 and plug-and-play operation with Windows, Android, Linux, macOS and Chrome OS.
