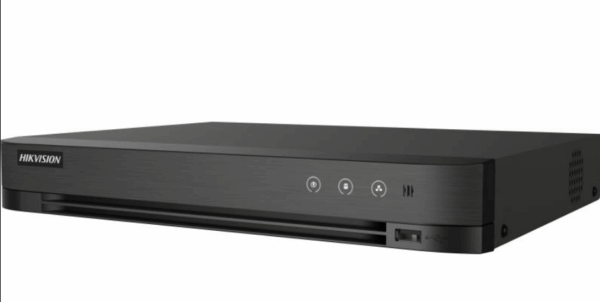

Specifications Hikvision iDS-7216HQHI-M1/SC
| Features | Specifications |
|---|---|
| Product Type | 16-Channel Turbo HD AcuSense DVR |
| Analog Video Input | 16 Channels, BNC |
| Supported Video Input | HDTVI / AHD / CVI / CVBS / IP |
| IP Camera Input | Up to 24 Channels, Up to 6MP |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | Up to 4MP Lite |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-Stream | Supported |
| Synchronous Playback | 16 Channels |
Video & Audio
| Features | Specifications |
|---|---|
| HDTVI Input | Up to 3MP, 1080p @ 30fps, 1080p @ 25fps, 720p @ 60/50/30/25fps |
| AHD Input | Up to 4MP, 1080p @ 25/30fps, 720p @ 25/30fps |
| HDCVI Input | Up to 3MP, 1080p @ 25/30fps, 720p @ 25/30/50/60fps |
| Audio Input | 1-Channel RCA |
| Audio Output | 1-Channel RCA |
| Two-Way Audio | 1-Channel, Using the First Audio Input |
| HDMI Output | 1-Channel, Up to 1920 × 1080 @ 60Hz |
| VGA Output | 1-Channel, Up to 1920 × 1080 @ 60Hz |
| Video Output | HDMI and VGA Simultaneous Output |
AI & AcuSense
| Features | Specifications |
|---|---|
| Motion Detection 2.0 | Deep Learning-Based Human and Vehicle Classification |
| Perimeter Protection | Line Crossing and Intrusion Detection |
| Human/Vehicle Analysis | Up to 4 Channels |
| False Alarm Reduction | Human and Vehicle Target Classification |
| VCA | Supports Multiple Video Content Analytics Events |
| Smart Search | Search by Object or Event Type |
Storage & Network
| Features | Specifications |
|---|---|
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 10TB |
| Network Interface | 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connection | Up to 128 Remote Connections |
| Wi-Fi | Wi-Fi Network Connection via USB Wi-Fi Dongle |
Interfaces & General
| Features | Specifications |
|---|---|
| USB | 1 × USB 2.0 Front, 1 × USB 3.0 Rear |
| Serial Interface | 1 × RS-485, Half-Duplex |
| Power Supply | 12VDC, 2A |
| Power Consumption | ≤ 24W, Without HDD |
| Chassis | 1U |
| Dimensions | 315 × 242 × 45 mm |
| Weight | ≤ 2 kg, Without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
Note: The iDS-7216HQHI-M1/SC supports up to 16 analog cameras and can connect up to 24 IP cameras, depending on the configured video input mode.
Important: Actual supported channels, resolutions and functions may vary depending on firmware version and camera configuration. Please refer to the actual product and official Hikvision documentation.
