| Features |
Description |
| Device Type |
1-Gang Smart Wireless Light Switch Module / Panel (Zigbee Protocol) |
| Brand / Series |
HIP / Smart Home & IoT Automation Series |
| Communication Protocol |
Zigbee 3.0 (2.405GHz–2.480GHz IEEE802.15.4) |
| Control Channels |
Independent control for 1 lighting circuit or electrical load |
| Input Voltage |
AC 100V–240V / 200–240V, 50/60 Hz |
| Control Methods |
Touch control, Mobile App control, and Voice assistant commands |
| Application |
Smart home lighting automation for residential and commercial buildings requiring single-circuit switching and remote scheduling |
| TECHNICAL & ELECTRICAL PERFORMANCE |
| Maximum Load |
Up to standard wattage specifications for lighting and electrical fixtures |
| Wireless Range |
Up to 100 meters in open areas (gateway dependent) |
| Smart Ecosystem |
Compatible with smartphone applications (HIP IoT / Tuya ecosystem) |
| Voice Integration |
Supports Amazon Alexa and Google Assistant voice commands |
| PHYSICAL & ENVIRONMENTAL SPECIFICATIONS |
| Housing Material |
High-grade flame-retardant PC (Polycarbonate) plastic material |
| Operating Temperature |
-10°C to +40°C (14°F to 104°F) |
| Dimensions |
Compact modular footprint designed for standard junction/switch boxes |
| Certifications |
CE, RoHS compliant |

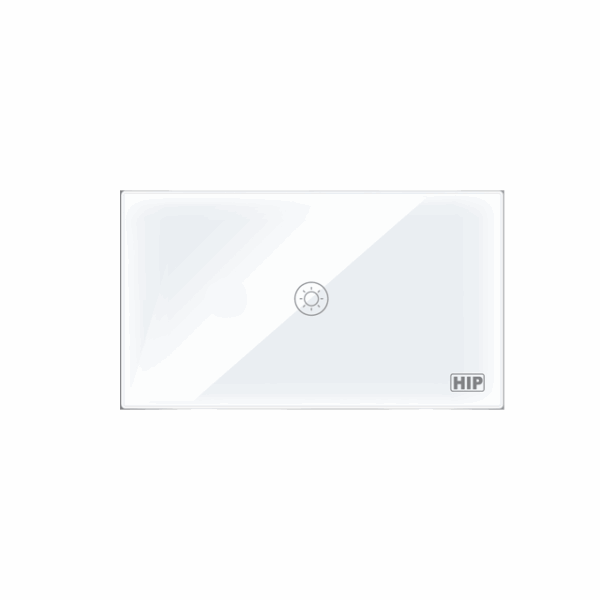

Note: The HIP 1Gang Switch Zigbee HS-LP01 is an intelligent single-gang wireless lighting control switch engineered to manage an individual light circuit or electrical load. Operating via the stable and energy-efficient Zigbee 3.0 protocol, it enables users to turn fixtures on and off manually via touch, set automated timers, or control them remotely through mobile applications and smart voice assistants.
Important: The HS-LP01 requires a compatible Zigbee gateway hub and operates on an input voltage of 100V–240V AC. It provides 1 independent switching channel with full support for mobile app synchronization, automated scheduling, and hands-free voice control via Amazon Alexa and Google Assistant, housed within a flame-retardant PC enclosure rated for temperatures from -10°C to +40°C.
