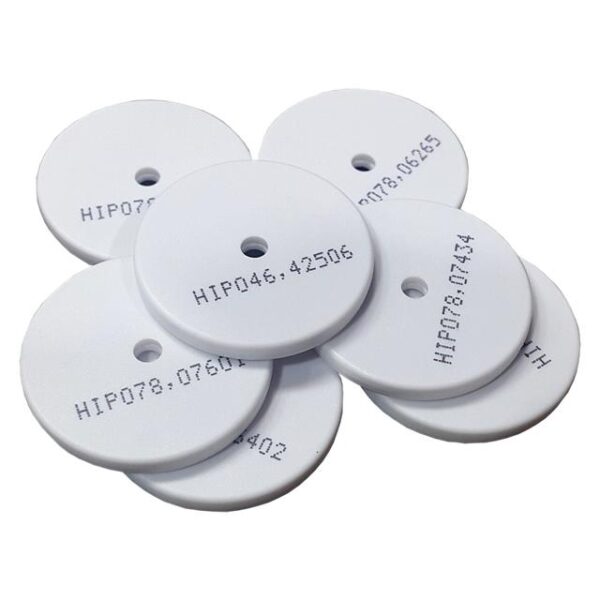

Specifications HIP CMW-01

Features	Specifications
General
Product Type	RFID Checkpoint Tag
Model	CMW-01
Application	Guard Tour System, Time Attendance and Access Control
Tag Shape	Round
Reading Method	Contactless RFID
Technology	Passive RFID
RFID Specification
Operating Frequency	125 kHz or 13.56 MHz, depending on selected version
RFID Type	RFID Tag
Encoding	Sequential Number Encoding Optional
Identification	Unique Tag Identification Number
Reading	Contactless RFID Reading
Physical Specification
Material	Plastic / ABS Keytag
Color	White
Shape	Round RFID Tag
Approximate Package Size	40 × 40 × 5mm
Installation	Suitable for installation at designated checkpoint locations
Application
Guard Tour System	Used as a checkpoint tag for security patrol routes
Time Attendance	Compatible with supported RFID-based time attendance systems
Access Control	Can be used with compatible RFID access control systems
Security Patrol	Suitable for monitoring and verifying security guard checkpoints
Installation Location	Offices, factories, buildings, warehouses and other security patrol areas
Environmental Specification
Operating Temperature	0°C to 60°C
Storage Temperature	0°C to 60°C
Environmental Resistance	Dirt, dust and water-resistant versions available
Outdoor Application	Suitable for outdoor checkpoint applications when using the appropriate resistant version

Note: HIP CMW-01 is a round RFID checkpoint tag designed for Guard Tour Systems, Time Attendance and compatible Access Control applications. It supports 125 kHz or 13.56 MHz RFID frequencies depending on the selected version, with optional sequential number encoding. The tag is suitable for installation at designated security patrol checkpoints and is available in versions with resistance to dirt, dust and water.
