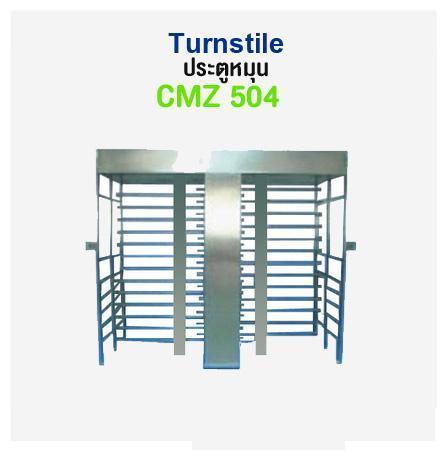

Specifications HIP CMZ504
| Features | Specifications |
|---|---|
Product |
|
| Product Type | Full Height Turnstile |
| Model | CMZ504 |
| Turnstile Type | Three-Arm Full Height Turnstile |
| Access Control | Supports All Types of Access Control Systems |
| Direction | Uni-Directional / Bi-Directional |
Performance |
|
| Passage Width | 650 mm |
| Passing Speed | Up to 30 Persons/Minute with Access Control |
| Arm Length | 600 mm |
| Arm Rotation | 120° per Rotation |
Construction |
|
| Material | Stainless Steel 304 |
| Working Environment | Indoor / Outdoor |
Electrical |
|
| Power Supply | 220VAC, 50Hz |
| Operating Voltage | 12V / 18V DC |
| Maximum Power Consumption | 100W |
Environment |
|
| Operating Temperature | -15°C to 60°C |
| Operating Humidity | <95% RH |
Physical |
|
| Dimensions | 1630 × 1350 × 2220 mm |
| Weight | 300 kg |
Note: The HIP CMZ504 is a Stainless Steel 304 Full Height Turnstile with 650mm passage width, 30 persons/minute passing speed, and support for uni-directional or bi-directional access control.
