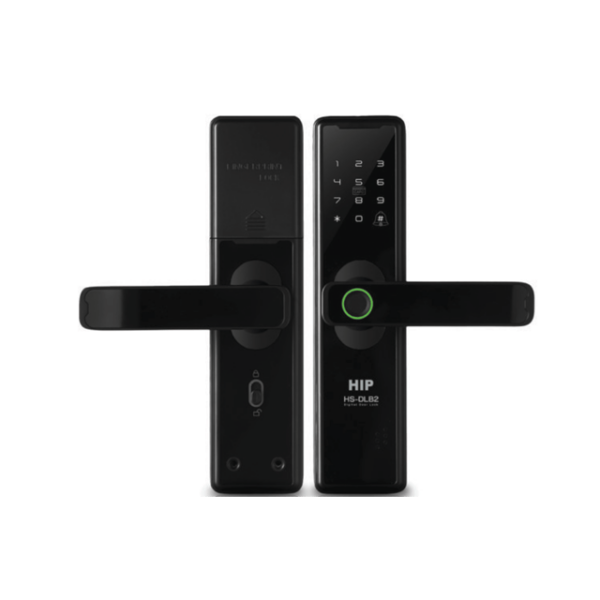

Specifications HIP Digital Door Lock HS-DLB2
| Features | Specifications |
|---|---|
| Product Type | Digital Door Lock |
| Unlock Methods | Fingerprint, Password, IC Card, Mechanical Key, App |
| Connectivity | Bluetooth |
| Material | Zinc Alloy |
| Voice Guidance | Chinese / English |
| Auto Lock | Supported |
Access & Capacity
| Features | Specifications |
|---|---|
| Total Capacity | Up to 1,000 users |
| Fingerprint | Up to 100 fingerprints |
| Password | Up to 1,000 passwords |
| Card | Up to 1,000 cards |
| Card Type | IC Card |
| Password Keyboard | 12-key Capacitive Touch Keyboard |
| One-Time Passcode | Supported |
Smart Functions
| Features | Specifications |
|---|---|
| Mobile App | HIP IoT / Smart Life |
| Bluetooth Control | Supported |
| Mobile Unlock | Supported |
| Access Sharing | Supported |
| Access Log | View Unlock Records via App |
| Emergency Power | Micro USB, DC 5–7V |
| Low Voltage Alarm | ≤4.8V |
Electrical Specifications
| Features | Specifications |
|---|---|
| Working Voltage | DC 6V |
| Backup Power Supply | Micro USB, DC 5–7V |
| Quiescent Current | ≤70 µA |
| Dynamic Current | ≤300 mA |
| Drive Output | DC |
| Drive Load Capacity | ≤300 mA |
Physical & Environmental
| Features | Specifications |
|---|---|
| Working Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Working Humidity | 5%–95% RH, non-condensing |
| Installation | Suitable for Door Installation |
Note: HIP HS-DLB2 is a smart digital door lock supporting fingerprint, password, IC card, mechanical key and Bluetooth App access, with One-Time Passcode and access log functions.
Important: Actual user capacity and supported installation conditions may vary depending on the lock configuration and installation environment.
