Specifications HIP LED P4 Display RS485
| Features | Specifications |
|---|---|
Display |
|
| Display Type | P4 LED Display |
| Pixel Pitch | 4.75 mm |
| Module Resolution | 64 × 64 Pixels |
| Display Size | 295 × 295 mm |
| Colors | RGB |
| Brightness | ≥1000 cd/m² |
| Best Viewing Distance | ≥4 m |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing Angle | 120° |
Communication |
|
| Communication | TCP/IP or RS485 |
| RS485 Application | For connection with LPR Camera Standalone |
| System Compatibility | HIP Carpark Management |
LED and Power |
|
| LED Fill Light | Yes |
| Maximum Power Consumption | 250–400 W/m² |
| Input Voltage | AC 220V/110V ±10%, converted to DC 5V |
Environmental |
|
| Protection Rating | IP66 |
| Installation | Indoor / Outdoor |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 95% RH |
| Life Span | More than 100,000 hours |
Physical |
|
| Housing Dimension | 344 × 564 × 120 mm (H 1329 mm) |

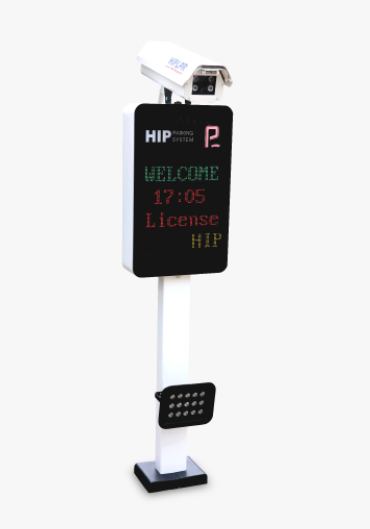

Note: The HIP LED P4 64×64 Pixel Stand is an indoor/outdoor LED display designed for parking management and LPR applications. It features P4 LED technology with RGB display, 64 × 64 pixel module resolution, ≥1000 cd/m² brightness, IP66 protection, and communication via TCP/IP or RS485. The RS485 version is designed for connection with LPR Camera Standalone systems and can display license plates, welcome messages, and other parking information.
