| Features |
Description |
| Device Type |
Wireless 433MHz Passive Infrared (PIR) Motion Detector |
| Brand / Series |
HIP / Alarm Accessories & Security Sensors Series |
| Operating Frequency |
433MHz Wireless Radio Frequency (RF) Transmission |
| Detection Technology |
Dual-element infrared sensor with intelligent digital signal processing |
| Power Supply |
Battery-powered (AA or AAA batteries, model-dependent) with low-voltage alert |
| Application |
Indoor residential, retail, and commercial security alarm systems requiring wire-free motion tracking and intrusion detection |
| DETECTION & OPERATIONAL PERFORMANCE |
| Detection Range |
Up to 8 to 12 meters (typical room coverage) |
| Detection Angle |
Approx. 110° horizontal coverage |
| Transmission Distance |
Up to 50–100 meters in open areas (environment and barrier dependent) |
| Compatibility |
Designed to pair seamlessly with 433MHz wireless alarm control panels and security receiver hubs |
| PHYSICAL & ENVIRONMENTAL SPECIFICATIONS |
| Casing Material |
Durable flame-retardant ABS plastic housing with wall/corner mounting bracket |
| Operating Temperature |
-10°C to +55°C (14°F to 131°F) |
| Operating Humidity |
10% to 90% RH (Non-condensing) |
| Anti-Tamper |
Built-in tamper switch for unauthorized removal or opening protection |

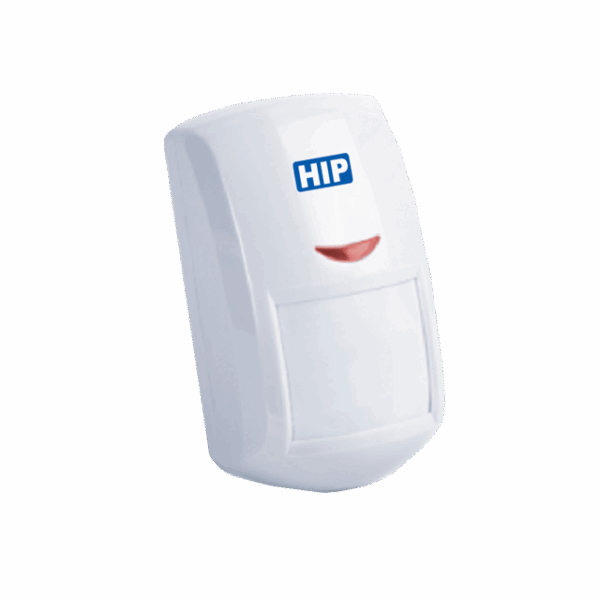

Note: The HIP PIR Sensor 433MHz HS-PS86 is an advanced wireless motion detector engineered to monitor indoor spaces for unauthorized human movement. Operating on a 433MHz frequency, it communicates instantly with compatible security alarm hubs upon detecting infrared body heat changes, providing reliable wireless perimeter security without complicated cabling.
Important: The HS-PS86 covers an effective detection distance of up to 8 to 12 meters across a 110° wide angle. It transmits wirelessly on a 433MHz RF frequency up to 100 meters in open space. Powered by internal batteries with a built-in tamper switch, it is engineered to function dependably in indoor environments ranging from -10°C to +55°C.
