Specifications HIP TAWG22T/TAWG21T
| Features | Description |
|---|---|
| Device Type | Elevator Access Control Main Controller + I/O Controller |
| Model | TAWG22T + TAWG21T |
| Maximum Floors | Up to 40 Floors |
| Users | Up to 20,000 Users |
| Event Buffer | Up to 100,000 Offline Events |
| Reader Interface | Wiegand 26/34 bit |
| Communication | TCP/IP |
| Power Supply | 12VDC, 4–7A |
| Operating Temperature | -40°C ~ 70°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| MAIN CONTROLLER – TAWG22T | |
|---|---|
| Controller Type | Elevator Main Controller |
| Floor Control | Up to 20 Floors |
| Users | Up to 20,000 Users |
| Event Buffer | Up to 100,000 Offline Events |
| Reader Input | 1 × Wiegand Reader |
| Wiegand Format | 26/34 bit |
| Communication Protocol | TCP/IP |
| Door Control | 1 Door |
| Door Opening Time Extension | 3 Seconds |
| Maximum Controllers | Unlimited |
| Database | Microsoft Access Database |
| Dimensions | 160 × 106mm |
| I/O CONTROLLER – TAWG21T | |
|---|---|
| Controller Type | Elevator I/O Controller |
| Floor Control | Up to 20 Floors |
| Expansion | Works with TAWG22T Main Controller |
| Power Supply | 12VDC, 4–7A |
| Dimensions | 218 × 106mm |
| ACCESS CONTROL | |
|---|---|
| Access Method | Wiegand Card Reader |
| Reader Format | Wiegand 26/34 bit |
| Elevator Control | Floor Access Control |
| Maximum Floors | 40 Floors with TAWG22T + TAWG21T |
| User Capacity | 20,000 Users |
| Offline Event Capacity | 100,000 Events |
| COMMUNICATION | |
|---|---|
| Communication Interface | TCP/IP |
| Communication Protocol | TCP/IP |
| Network Connection | Ethernet Network |
| POWER | |
|---|---|
| Power Input | 12VDC |
| Current | 4–7A |
| Power Type | DC Power Supply |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| TAWG22T Dimensions | 160 × 106mm |
| TAWG21T Dimensions | 218 × 106mm |
| Operating Temperature | -40°C ~ 70°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Installation | Indoor Controller Panel |

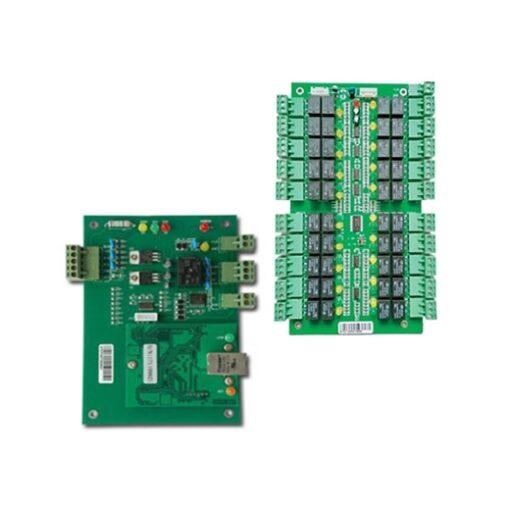

Note: The HIP TAWG22T + TAWG21T is an elevator access control system consisting of a main controller and I/O controller. The system is designed to control elevator floor access for buildings such as offices, condominiums and commercial buildings.
Important: The TAWG22T + TAWG21T supports up to 40 floors, 20,000 users and 100,000 offline event records. It supports Wiegand 26/34-bit readers and TCP/IP communication, with a 12VDC power supply and operating temperature from -40°C to 70°C.
