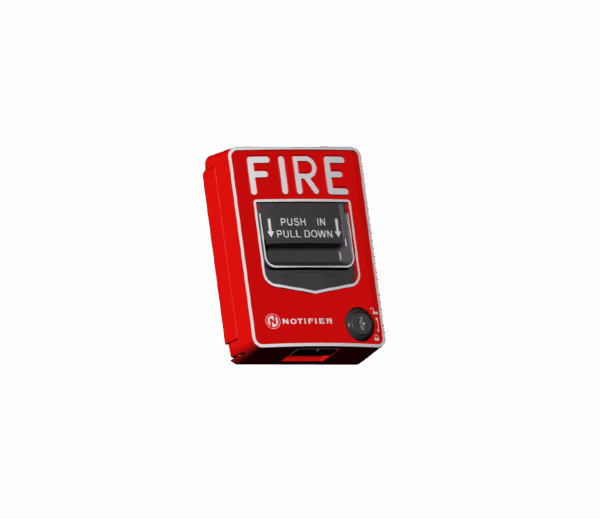

Specifications Honeywell NOTIFIER NBG-12S
| Features | Specifications |
|---|---|
| Product Type | Manual Fire Alarm Pull Station |
| System Type | Conventional Fire Alarm System |
| Operation | Single Action |
| Alarm Activation | Pull Down Handle |
| Alarm Input | 1 × Normally Open (N/O) |
| Switch Type | SPST |
| Switch Contact Rating | 0.25A @ 30VAC/DC |
| Connection | Pigtail Connections |
| Reset Type | Hex Lock Reset |
| Activation Force | Maximum 5lb |
| Visual Indicator | Yellow “ACTIVATED” Flag |
| Operating Instructions | Molded Instructions with Braille Text |
Installation & Construction
| Features | Specifications |
|---|---|
| Mounting | Surface or Semi-Flush Mount |
| Compatible Backbox | SB-10 or SB-I/O Surface Backbox |
| Electrical Box | Single-Gang, Double-Gang or 4″ Square Box |
| Material | Durable Polycarbonate |
| Color | Red |
| Application | Indoor, Dry Location |
| Dimensions | 5.5 × 4.121 × 1.39in (13.97 × 10.47 × 3.53cm) |
| Shipping Weight | Approx. 272.15g |
Standards & Approvals
| Features | Specifications |
|---|---|
| Standards | UL 38 |
| ADA Compliance | Maximum 5lb Pull Force |
| Approvals | UL Listed, FM Approved |
| Country of Origin | USA |
Note: The NBG-12S is a non-coded manual pull station designed to provide an alarm initiating signal to conventional fire alarm control panels.
Important: Installation, testing and maintenance should be performed in accordance with applicable fire alarm codes and local regulations.
