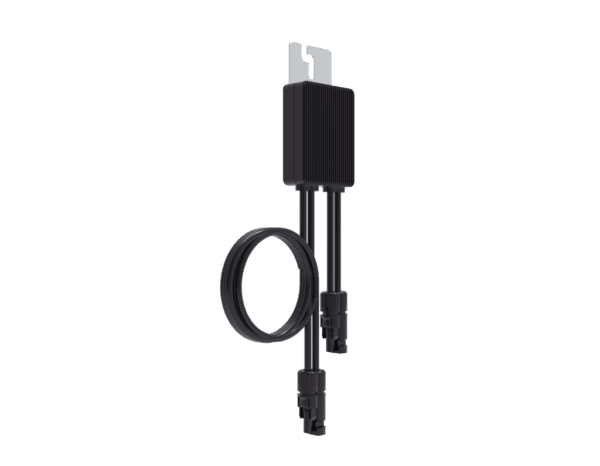

HUAWEI SUN2000-450W-P

HUAWEI รุ่น SUN2000-450W-P

คุณสมบัติ

  • เครื่องมือเพิ่มประสิทธิภาพพลังงานประสิทธิภาพสูง
  • แก้ปัญหาการแรเงา เงาบัง เงาต้นไม้ ถึง 25%
  • การแปลง DC เป็น AC ที่เหมาะสมอยู่อาศัยและเชิงพาณิชย์
  • สามารถทำ Rapid Stopper
  • สามารถใช้กับ Solar Panel สูงสุด 450W
  • ทนน้ำด้วยมาตราฐาน IP68
  • ได้รับมาตราฐาน NEC 2014/2017
  • สามารถใช้ร่วมกับ SUN2000-3/5KTL-L1, SUN2000-5/10KTL-M1, SUN2000-12/15/20KTL-M2, SUN2000-30/36/40KTL-M3
หมวดหมู่: , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

HUAWEI Smart PV Optimizer SUN2000-450W-P – allow more modules on each roof to achieve higher system yields

  • One optimizer fits all application scenarios
  • Up to 30% more energy by optimizing each module’s performance
  • Lower BoS cost & higher oversizing with long string design
  • Module level voltage shutdown for safe installation and maintenance
  • Support PINpoint arc fault positioning

Features:

  • Rated Input DC Power: 450 W
  • MPPT operating voltage range: 8 – 80 V
  • Max.output voltage: 80 V
  • Max. output current: 15 A
  • Input / Output connectors: Staubli MC4
  • Input wire length: 0,15 m
  • Output wire length: 1,2 m
  • Degree of protection: IP68
  • Weight (including cables): 0,55 kg
  • Dimension (W x H x D): 71 x 138 x 25 mm
