| Features |
Description |
| Product Type |
2MP IR Fixed Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 30 fps |
| Lens |
Fixed 2.8 mm |
| Night Vision |
Smart IR up to 30 m |
| Video Compression |
H.264 / H.264+ |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
12V DC ±25% / PoE IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Effective Pixels |
2 MP |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 30 fps |
| Minimum Illumination |
0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day/Night |
ICR |
| Wide Dynamic Range |
Digital WDR |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
2.8 mm |
| Aperture |
F2.0 |
| Horizontal Field of View |
114.8° |
| Lens Mount |
M12 |
| VIDEO |
| Video Compression |
H.264 / H.264+ |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 30 fps |
| Image Enhancement |
Digital WDR, BLC, 3D DNR |
| ROI |
Supported |
| Video Tampering |
Supported |
| Motion Detection |
Supported |
| IMAGE |
| Day/Night Mode |
Auto / Scheduled |
| Digital Noise Reduction |
3D DNR |
| Backlight Compensation |
BLC |
| Wide Dynamic Range |
Digital WDR |
| Image Adjustment |
Brightness, Contrast, Saturation, Sharpness and Hue |
| ILLUMINATOR |
| IR Type |
Infrared |
| IR Wavelength |
850 nm |
| IR Distance |
Up to 30 m |
| IR Control |
Smart IR |
| STORAGE |
| Local Storage |
Not Supported |
| Network Storage |
NVR / Network Storage Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols |
TCP/IP, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, NTP, SMTP, UPnP, IPv4, IPv6 |
| Remote Access |
Web Browser, iVMS-4200 and Hik-Connect |
| ONVIF |
Supported |
| Security |
Password Protection, HTTPS and IP Filtering |
| AUDIO & ALARM |
| Built-in Microphone |
Not Supported |
| Audio Input |
Not Supported |
| Audio Output |
Not Supported |
| Alarm Input/Output |
Not Supported |
| Motion Detection |
Supported |
| Video Tampering |
Supported |
| POWER & INTERFACE |
| Power Supply |
12V DC ±25% |
| PoE |
IEEE 802.3af |
| Ethernet Port |
1 × RJ45 10/100 Mbps |
| PHYSICAL & ENVIRONMENT |
| Protection |
IP67 |
| Dimensions |
177.6 × 66.2 × 67.8 mm |
| Weight |
Approx. 270 g |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH |
| Installation |
Wall / Ceiling Mount |

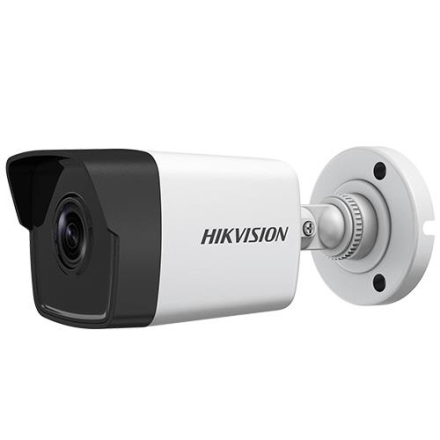

Note: HVS-2CD1021-I28 is a 2MP fixed bullet network camera designed for general indoor and outdoor surveillance applications. It provides Full HD imaging, Smart IR up to 30 m, Digital WDR, 3D DNR and PoE connectivity.
Important: The HVS-2CD1021-I28 is an older-generation model. Specifications may vary by hardware revision or regional version. Please verify the product label and supplier documentation before installation.
