| Features |
Description |
| Product Type |
2 MP Fixed Bullet Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 30 fps |
| Lens |
Fixed 4 mm |
| Horizontal Field of View |
83.6° |
| Night Vision |
IR up to 30 m |
| Video Compression |
H.264+ / H.264 / MJPEG |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
12V DC ±25% / PoE IEEE 802.3af |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Effective Pixels |
2 MP |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
0.01 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day/Night |
IR Cut Filter with Auto Switch |
| Wide Dynamic Range |
Digital WDR |
| Digital Noise Reduction |
3D DNR |
| 3-Axis Adjustment |
Pan: 0° to 360°, Tilt: -90° to 90°, Rotation: 0° to 360° |
| LENS |
| Lens Type |
Fixed |
| Focal Length |
4 mm |
| Aperture |
F2.2 |
| Horizontal Field of View |
83.6° |
| Lens Mount |
M12 |
| VIDEO |
| Video Compression |
H.264+ / H.264 |
| Sub-Stream Compression |
H.264 / MJPEG |
| H.264 Profile |
Baseline Profile / Main Profile |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Main Stream |
1920 × 1080 / 1280 × 960 / 1280 × 720 |
| Main Stream Frame Rate |
50Hz: Up to 25 fps; 60Hz: Up to 30 fps |
| Sub-Stream |
704 × 576 / 640 × 480 / 352 × 288 / 320 × 240 |
| Sub-Stream Frame Rate |
50Hz: Up to 25 fps; 60Hz: Up to 30 fps |
| IMAGE |
| Image Settings |
Brightness, Saturation, Contrast and Sharpness |
| Day/Night Switch |
Auto / Scheduled |
| Backlight Compensation |
BLC |
| Region of Interest |
1 Fixed Region |
| Mirror |
Supported |
| Anti-Flicker |
Supported |
| Privacy Mask |
Supported |
| Watermark |
Supported |
| ILLUMINATOR |
| IR Type |
Infrared |
| IR Range |
Up to 30 m |
| IR Control |
Automatic |
| STORAGE |
| Local Storage |
Not Supported |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Network Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| ONVIF |
Profile S / Profile G |
| API |
ISAPI / CGI |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Remote Monitoring |
Hik-Connect / iVMS |
| AUDIO & ALARM |
| Audio Input |
Not Supported |
| Audio Output |
Not Supported |
| Motion Detection |
Supported |
| Video Tampering |
Supported |
| Network Disconnected |
Supported |
| IP Address Conflict |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10M/100M Self-Adaptive Ethernet Port |
| PoE |
IEEE 802.3af |
| POWER & PROTECTION |
| Power Supply |
12 VDC ±25% |
| PoE |
IEEE 802.3af |
| Power Consumption |
Max. 5 W / 6.5 W with PoE |
| Ingress Protection |
IP67 |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
69.1 × 66 × 172.7 mm |
| Weight |
Approx. 500 g |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Installation |
Wall / Ceiling Mount |

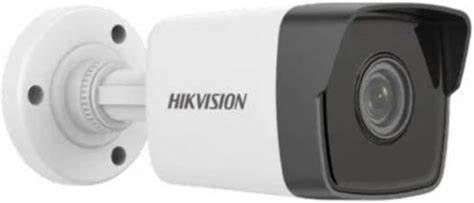

Note: HVS-2CD1021-I4 is a 2 MP fixed bullet network camera with a 4 mm fixed lens, up to 30 m IR range, Digital WDR, 3D DNR, PoE and IP67 protection.
Important: HVS-2CD1021-I4 is the 4 mm lens version of the HVS-2CD1021-I series. Specifications may vary slightly by hardware revision or regional version.
