| Features |
Description |
| Product Type |

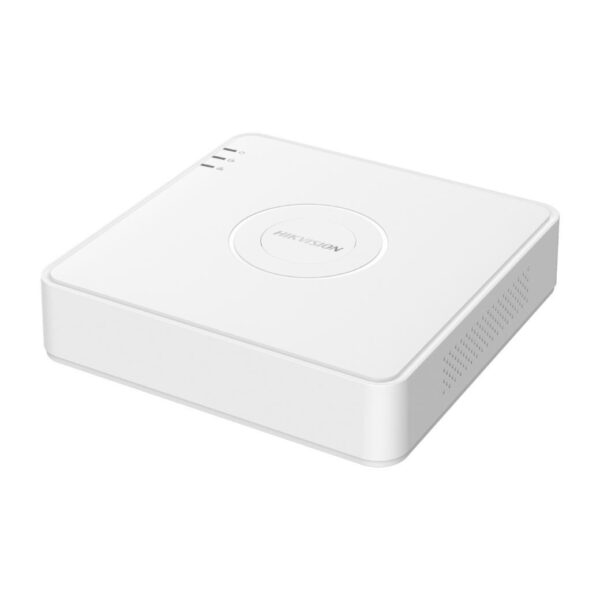

4-Channel 1080P Mini 1U H.265 AcuSense DVR |
| Analog Video Input |
4 × BNC |
| IP Video Input |
Up to 6 Channels, up to 6MP |
| Video Standard |
HDTVI / AHD / CVI / CVBS / IP |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Recording Resolution |
Up to 4MP Lite |
| HDD |
1 × SATA, up to 10TB |
| Smart Function |
Motion Detection 2.0 & Perimeter Protection |
| Video & Recording |
| Analog Video Input |
4 × BNC, 1.0 Vp-p, 75Ω |
| Analog Signal |
HDTVI / AHD / CVI / CVBS |
| IP Video Input |
Up to 6 Channels with Enhanced IP Mode |
| IP Camera Resolution |
Up to 6MP |
| Encoding Resolution |
4MP Lite / 3MP / 1080P / 720P / VGA / WD1 / 4CIF / CIF |
| Encoding Frame Rate |
Up to 1080P @ 15fps |
| Video Bit Rate |
32Kbps to 6Mbps |
| Dual Stream |
Supported |
| Synchronous Playback |
4 Channels |
| Compression |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| H.265 Pro+ |
Supported |
| Audio Compression |
G.711u |
| Audio Bit Rate |
64Kbps |
| Smart & AcuSense |
| Motion Detection 2.0 |
Deep Learning-Based Human and Vehicle Classification |
| Human/Vehicle Analysis |
Up to 2 Channels |
| Perimeter Protection |
Deep Learning-Based Human and Vehicle Classification |
| Smart Search |
Search by Object or Event Type |
| Face Detection |
Face Picture Detection and Search |
| Video Output |
| HDMI Output |
1 × HDMI, up to 1920 × 1080 @ 60Hz |
| VGA Output |
1 × VGA, up to 1920 × 1080 @ 60Hz |
| Output Mode |
HDMI / VGA Simultaneous Output |
| Video Output Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 |
| Audio |
| Audio Input |
1 × RCA, 4-Channel Audio via Coaxial Cable |
| Audio Output |
1 × RCA |
| Two-Way Audio |
Supported via First Audio Input |
| Storage & Network |
| SATA Interface |
1 × SATA |
| HDD Capacity |
Up to 10TB |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| Total Bandwidth |
72Mbps |
| Remote Connection |
Up to 32 Users |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Wi-Fi |
Supported via Wi-Fi Dongle through USB |
| Interface |
| Video Input |
4 × BNC |
| Network Port |
1 × RJ45 10/100Mbps |
| USB |
2 × USB 2.0 |
| HDMI |
1 × HDMI |
| VGA |
1 × VGA |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| Power & Physical |
| Power Supply |
12VDC, 1.5A |
| Power Consumption |
≤8W, Without HDD |
| Dimensions |
200 × 200 × 45mm |
| Weight |
≤1kg, Without HDD |
| Form Factor |
Mini 1U |
| Environment |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10% to 90% |
Note: The iDS-7104HQHI-M1/S supports 4 analog channels and up to 6 IP camera channels with Enhanced IP Mode. IP cameras support up to 6MP resolution.
Important: Motion Detection 2.0 and Perimeter Protection cannot be enabled simultaneously. Enabling one function disables the other.
