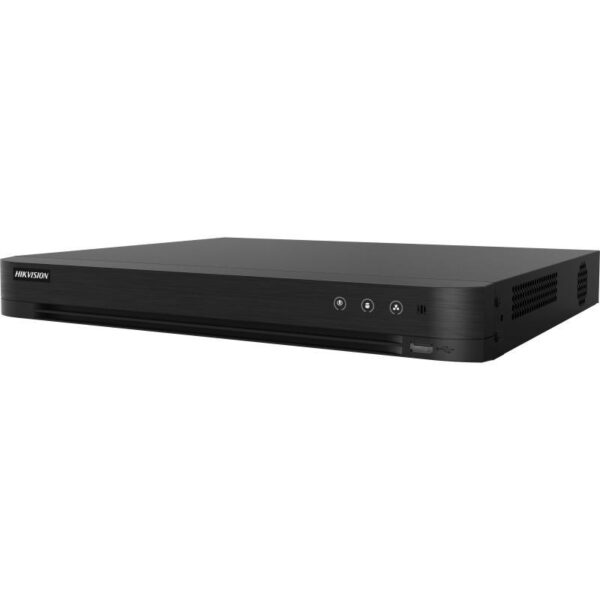

Specifications Hikvision iDS-7208HQHI-M2/S
| Features | Specifications |
|---|---|
Recorder |
|
| Product Type | 8-Channel Turbo AcuSense DVR |
| Video Inputs | 8 × BNC |
| Input Type | HDTVI / AHD / HDCVI / CVBS / IP |
| IP Camera Input | Up to 12 channels |
| IP Camera Resolution | Up to 6 MP |
Recording |
|
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog Recording | Up to 4 MP Lite |
| Recording Resolution | 4 MP Lite / 3 MP / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual Stream | Supported |
| Stream Type | Video / Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
Smart Function |
|
| Motion Detection 2.0 | Deep learning-based human and vehicle classification |
| Perimeter Protection | Line Crossing and Intrusion Detection |
| Human / Vehicle Analysis | Supported on analog channels |
| VCA | Multiple Video Content Analytics events |
| Smart Search | Supported |
Video & Audio Output |
|
| HDMI / VGA Output | Up to 1920 × 1080 @ 60 Hz |
| CVBS Output | 1 × BNC |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported via audio input |
| Synchronous Playback | 8 channels |
Storage |
|
| SATA Interface | 2 × SATA |
| HDD Capacity | Up to 10 TB per HDD |
| Smart Search | Supported |
Network |
|
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Remote Connections | Up to 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS and ONVIF |
Interfaces |
|
| USB | 2 × USB 2.0 |
| Serial Interface | 1 × RS-485, half-duplex |
| Alarm Input / Output | Not available |
General |
|
| Chassis | 1U |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 30 W |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% |
| Dimensions | 380 × 320 × 48 mm |
| Weight | ≤ 1.78 kg |
Note: The Hikvision iDS-7208HQHI-M2/S is an 8-channel Turbo AcuSense DVR supporting HDTVI, AHD, HDCVI, CVBS and IP cameras. It supports H.265 Pro+ compression, Motion Detection 2.0, deep learning-based human and vehicle classification, perimeter protection and multiple VCA events. The recorder supports up to 12 IP camera inputs, two SATA HDDs up to 10 TB each and 1080p HDMI/VGA output.
