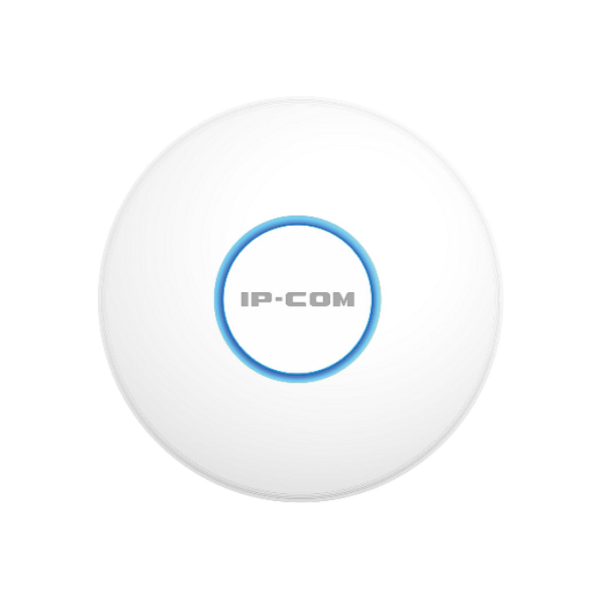

Specifications IP-COM iUAP-AC-LITE

Features	Specifications
Product Type	Dual-Band Ceiling Access Point
Wireless Standard	IEEE 802.11a/b/g/n/ac
Wi-Fi	Wi-Fi 5 (802.11ac Wave 2)
Frequency Band	2.4 GHz and 5 GHz
Wireless Speed	2.4 GHz: Up to 300 Mbps; 5 GHz: Up to 867 Mbps; Total: Up to 1167 Mbps
MU-MIMO	Supported
Antenna	2 × 4 dBi Omni-Directional Antennas
Ethernet Port	1 × 10/100/1000 Mbps Gigabit Ethernet
Power Supply	IEEE 802.3af/at PoE or 24V/0.5A Passive PoE
Max. Power Consumption	11.5W

Wireless Performance

Features	Specifications
2.4 GHz Max. Output Power	23 ± 1.5 dBm
5 GHz Max. Output Power	23 ± 1.5 dBm
2.4 GHz RX Sensitivity	-93 dBm (802.11b); -72 dBm (802.11n MCS7)
5 GHz RX Sensitivity	-93 dBm (802.11a); -74 dBm (802.11n MCS7)
Operating Modes	AP, Client + AP
Max. SSIDs	2.4 GHz: 8; 5 GHz: 4
Max. Connected Clients	128 Clients per Band
802.11k/v/r	Supported
WMM	Supported
VLAN Tagging	Supported
AP Isolation	Supported
RSSI Threshold	Supported

Security & Management

Features	Specifications
Wireless Security	WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
Encryption	AES / TKIP
Access Control	MAC Address-Based
SSID Control	SSID Hiding and VLAN Tagging
Management	Web UI, AC Controller
Cloud Management	ProFi Cloud
Diagnostics	Ping, Traceroute
Firmware Upgrade	Local and AC Controller Upgrade
Configuration	Backup and Restore Supported

Physical & Environmental

Features	Specifications
Installation	Ceiling Mount
Dimensions	176 × 176 × 43.5 mm
Operating Temperature	-10°C to 45°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Temperature	-30°C to 70°C
Storage Humidity	10%–90% RH, Non-Condensing

Note: The iUAP-AC-LITE is designed for indoor ceiling installation and provides up to 1167 Mbps combined dual-band wireless speed.

Important: Actual wireless performance and coverage may vary depending on the installation environment, interference, client devices, and software version.
