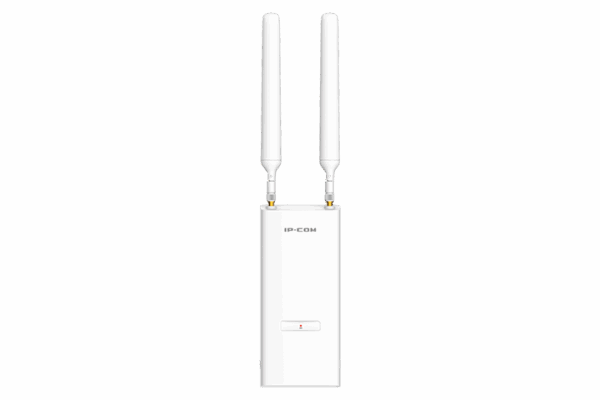

Specifications IP-COM iUAP-AC-M

Features	Specifications
Product Type	Indoor/Outdoor Wi-Fi Access Point
Wireless Standard	IEEE 802.11a/b/g/n/ac
Wi-Fi	Wi-Fi 5 (802.11ac)
Frequency Band	2.4 GHz and 5 GHz
Wireless Speed	2.4 GHz: Up to 300 Mbps; 5 GHz: Up to 867 Mbps; Total: Up to 1167 Mbps
MU-MIMO	Supported
Antenna	2 × 5 dBi Omni-Directional Antennas, RP-SMA Connector
Coverage	Up to 200 m radius
Ethernet Port	1 × 10/100/1000 Mbps Gigabit Ethernet
Power Supply	IEEE 802.3af PoE and 24V/0.5A Passive PoE
Max. Power Consumption	11.5W
Waterproof	IP65
Lightning Protection	6000V

Wireless Performance

Features	Specifications
2.4 GHz Max. Output Power	26 ± 1.5 dBm
5 GHz Max. Output Power	26 ± 1.5 dBm
2.4 GHz RX Sensitivity	-93 dBm (802.11b); -72 dBm (802.11n MCS7)
5 GHz RX Sensitivity	-93 dBm (802.11a); -74 dBm (802.11n MCS7)
Operating Modes	AP, Client+AP
Max. SSIDs	2.4 GHz: 8; 5 GHz: 4
Max. Connected Clients	128 clients per band
SSID VLAN	Supported
AP Isolation	Supported
WMM	Supported
RSSI Threshold	Supported

Security & Management

Features	Specifications
Wireless Security	WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
Access Control	MAC Address-Based
Management	Web UI, IP-COM AC Controller, ProFi Cloud
Diagnostics	Ping, Traceroute
Firmware Upgrade	Local and AC Controller Upgrade
Configuration	Backup and Restore Supported

Physical & Environmental

Features	Specifications
Mounting	Pole Mounting and Wall Mounting
Dimensions	194.7 × 83 × 42.1 mm
Operating Temperature	-30°C to 50°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Temperature	-30°C to 70°C
Storage Humidity	10%–90% RH, Non-Condensing

Note: The actual wireless coverage and performance may vary depending on the installation environment, interference, client devices, and antenna configuration.

Important: The specifications may vary between hardware versions and regional models. Please refer to the actual product and official documentation.
