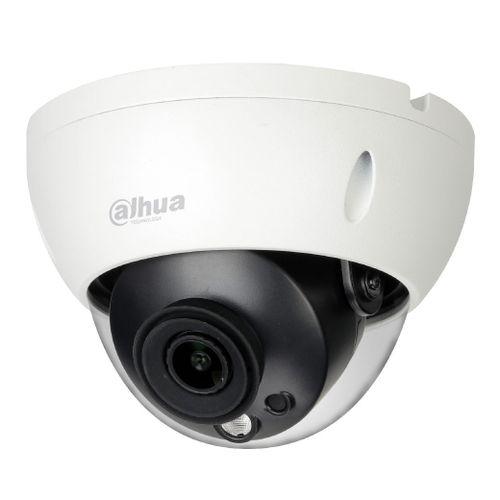

IPC-HDBW2230EP-S-S2
Dahua รุ่น IPC-HDBW2230EP-S-S2
2MP Dome Network Camera
- เซ็นเซอร์ภาพ CMOS ขนาด 2MP, 1 / 2.7”, ความสว่างต่ำ, ความคมชัดของภาพสูง
- เอาต์พุต 2MP (1920 × 1080) @ 25/30 fps
- ตัวแปลงสัญญาณ H.265 อัตราการบีบอัดสูงอัตราบิตต่ำพิเศษ
- LED IR ในตัวระยะ IR สูงสุด: 30 ม
- ROI, SMART H.264 / H.265, การเข้ารหัสที่ยืดหยุ่น, สามารถใช้ได้กับหลากหลาย
- แบนด์วิดธ์และสภาพแวดล้อมการจัดเก็บข้อมูล
- โหมดการหมุน, DWDR, 3D DNR, HLC, BLC, ลายน้ำดิจิตอล
- ใช้กับฉากการตรวจสอบต่างๆ
- การตรวจจับอัจฉริยะ: การบุกรุก, tripwire
- การตรวจจับความผิดปกติ: การตรวจจับการเคลื่อนไหว, การงัดแงะวิดีโอ, ไม่มีการ์ด SD,
- การ์ด SD เต็ม, ข้อผิดพลาดการ์ด SD, ตัดการเชื่อมต่อเครือข่าย, ความขัดแย้ง IP, อุปกรณ์ผิดกฎหมาย
- การตรวจสอบแรงดันไฟฟ้า
- รองรับสูงสุด การ์ด Micro SD 256 GB
- การสนับสนุนพลังงาน 12V DC / PoE
- ระดับการป้องกัน IP67, IK10
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Device Type | surveillance camera |
Connection type | wired |
Installation location | inside, outside |
Matrix resolution | 2 Mpx (1920х1080) |
Wi-Fi support | no |
Video standard | IP |
Type of instalation | wall, ceiling, overhead |
Form factor | dome |
Intended for use | home, house, office, store, warehouse, production, garage |
Matrix type | 1/2.7″ Progressive Scan CMOS |
Recording speed | main stream 1080p (1-25 fps), additional stream D1 (1-25 fps) |
Lens type | fixed |
Focal length | 2.8 mm |
Viewing angle | 110° |
Optical zoom | 1x |
Digital zoom | 1x |
Light sensitivity | 0.005 Lx / F1.6 |
Light distance | 30 m |
Type of illumination | infrared |
Day-night mode | yes, ICR filter |
Memory card slot | yes |
Built-in microphone | no |
Built-in speaker | no |
Video output | 1xRJ45 |
Audio inputs | no |
Audio outputs | no |
Network output | 1xRJ45 |
Network Interface | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, RTMP, Multicast, HTTPS, SFTP, 802.1x, ICMP, IGMP |
Type of memory cards | microSD up to 256 GB |
PoE support | yes |
PoE type | PoE (802.3af) |
Video compression | H.264, H.264+, H.265, MJPEG |
Alarm Inputs-Outputs | no |
Alarm inputs | no |
Alarm outputs | no |
Modes | ICR, color, B/W / 3D DNR / DWDR / AGC / BLC / AWB |
Streaming | 2 streams |
PTZ control | no |
Built-in lightning protection | no |
Additional functions of camera | motion detection, smart IR |
Moisture and dust protection | IP67 |
Vandal protection | IK10 |
Browsers | Chrome, Firefox, Safari, Edge, Opera |
OS support | Windows, MAC OS, IOS, Android |
Powered by batteries / rechargeable batteries | no |
Integration with Ajax system | no |
Compatibility | ONVIF Profile S&G, CGI |
Consumption | 5 W |
Operating voltage | 12V DC, PoE |
Dimensions (WхHхD) | Ф109.9×81 mm |
Body color | white |
Body material | metal |
Weight | 350 g |
Temperature range | -40…+60°C |
