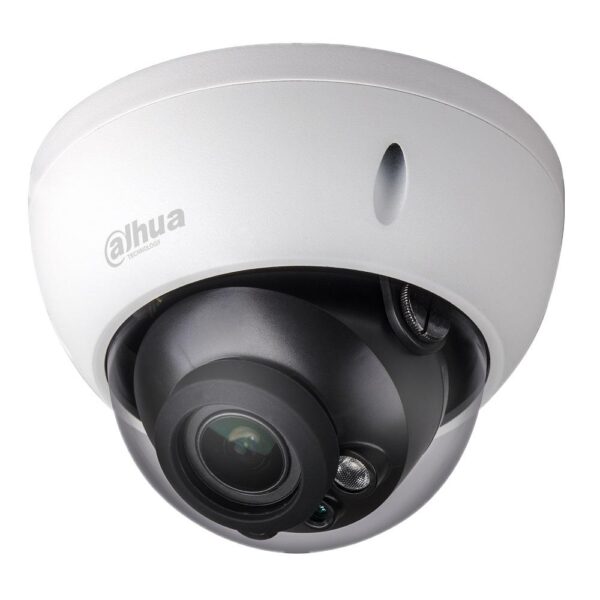

Specifications Dahua IPC-HDBW2831RP-ZS-S2
| Features | Description |
|---|---|
| Device Type | 8MP 4K Lite IR Motorized Varifocal Dome Network Camera (Series 2) |
| Brand / Series | Dahua / Lite Series (Cost-Effective High-Resolution IP Surveillance) |
| Image Sensor | 1/2.7″ 8Megapixel Progressive Scan CMOS |
| Maximum Resolution | 8MP 4K (3840 × 2160) @ 15 fps (Supports 2688 × 1520 @ 25/30 fps) |
| Lens Specifications | 3.7 mm to 11 mm Motorized Varifocal Lens |
| Field of View | Horizontal: 112°–46° | Vertical: 59°–26° | Diagonal: 135°–53° |
| Minimum Illumination | 0.009 Lux @ F2.0 (Color, AGC ON); 0 Lux with IR on |
| Night Vision Range | Smart IR Illumination up to 40 meters (131 feet) |
| Protection Rating | IP67 Weatherproof & IK10 Vandal-Resistant Housing |
| VIDEO, AUDIO & AI INTELLIGENCE | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG (sub stream) |
| Smart Analytics (IVS) | Perimeter Protection (Tripwire, Intrusion detection) |
| Image Enhancements | 120 dB True WDR, 3D DNR, BLC, HLC, Day/Night (ICR) |
| Audio Interface | Built-in Microphone (varies by regional sub-model variant; check local spec sheet) |
| STORAGE & NETWORK INTERFACES | |
|---|---|
| Edge Storage | MicroSD Card Slot supporting up to 256 GB local storage |
| Network Interface | 1 × RJ-45 Port (10/100 Base-T Ethernet) |
| Interoperability | ONVIF (Profile S/G/T), CGI, P2P |
| Management Software | Smart PSS, DSS, DMSS, Web UI |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Supply | 12V DC ± 30% or PoE (IEEE 802.3af) |
| Power Consumption | Max. 7.6 W (IR and motorized lens active) |
| Dimensions & Weight | 88.9 mm × Φ122 mm (3.5″ × Φ4.8″) | Net Weight: Approx. 0.47 kg (1.0 lb) |
| Operating Environment | -30°C to +60°C (-22°F to +140°F); Humidity: ≤ 95% RH |
Note: The Dahua IPC-HDBW2831RP-ZS-S2 is an 8MP 4K motorized varifocal dome network camera housed in a rugged vandal-resistant shell. Combining ultra-high-definition 4K clarity, a flexible remote zoom lens, 120dB true WDR, 40m Smart IR night vision, and IVS perimeter analytics, it is engineered for secure, low-profile outdoor or indoor ceiling installations.
Important: This camera delivers 8MP 4K resolution at 15 fps using a 3.7 mm–11 mm motorized varifocal lens. It features a robust IP67 and IK10 vandal-proof dome enclosure, local storage up to 256 GB via MicroSD, flexible powering via 12V DC or PoE, and operates dependably in temperatures ranging from -30°C to +60°C.
