| Features |
Description |
| Product Type |

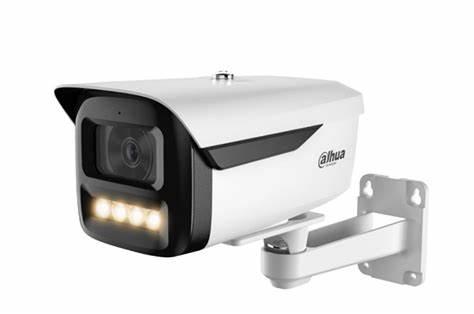

4MP WizColor Fixed-focal Bullet WizSense Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
Fixed-focal 3.6mm / 6mm |
| Minimum Illumination |
0.0005 Lux @ F1.0 |
| WDR |
120dB |
| Smart Features |
SMD Plus / Human & Vehicle Classification |
| Illumination |
Warm Light up to 50m |
| Audio |
Built-in Microphone |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/1.8″ CMOS |
| Maximum Resolution |
2688 × 1520 |
| Scanning System |
Progressive |
| Minimum Illumination |
0.0005 Lux @ F1.0 |
| Electronic Shutter |
Auto / Manual, 1/3s–1/100,000s |
| S/N Ratio |
>56dB |
| Wide Dynamic Range |
120dB |
| Day/Night |
Color / B/W |
| Noise Reduction |
3D NR |
| Backlight Compensation |
BLC / HLC |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| LENS |
| Lens Type |
Fixed-focal |
| Lens Mount |
M16 |
| Focal Length |
3.6mm / 6mm |
| Maximum Aperture |
F1.0 |
| Iris Control |
Fixed |
| Field of View – 3.6mm |
H: 94° / V: 50° / D: 113° |
| Field of View – 6mm |
H: 58° / V: 31° / D: 67° |
| Close Focus Distance – 3.6mm |
2.6m |
| Close Focus Distance – 6mm |
5.4m |
| ILLUMINATION |
| Light Type |
Warm Light |
| Illuminator |
4 × Warm Light |
| Illumination Distance |
Up to 50m |
| Illuminator Control |
Auto / Manual |
| Smart Illumination |
Supported |
| VIDEO |
| Video Compression |
H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Main Stream |
2688 × 1520 @ 1–20fps / 2560 × 1440 @ 1–25/30fps |
| Sub Stream |
704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Stream Capability |
2 Streams |
| Video Bit Rate |
H.264: 32Kbps–6144Kbps / H.265: 12Kbps–6144Kbps |
| Bit Rate Control |
CBR / VBR |
| ROI |
Supported, 4 Areas |
| Image Rotation |
0° / 90° / 180° / 270° |
| Privacy Masking |
4 Areas |
| Digital Watermarking |
Supported |
| SMART FEATURES |
| IVS |
Intrusion / Tripwire |
| Target Classification |
Human / Vehicle |
| SMD |
SMD Plus |
| Smart Search |
Supported with Smart NVR |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| Audio Detection |
Supported |
| Voltage Detection |
Supported |
| AUDIO |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711a / G.711Mu / PCM / G.726 |
| Audio Detection |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Ethernet Port |
| Network Protocols |
IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / P2P / Bonjour |
| Interoperability |
ONVIF Profile S / Profile G / Profile T / CGI |
| Maximum Users |
20 Users |
| Total Bandwidth |
48Mbps |
| Security |
HTTPS / 802.1X / IP-MAC Filtering / Account Lockout / Security Logs / X.509 / Trusted Boot / Trusted Execution / Trusted Upgrade |
| Management Software |
SmartPSS Lite / DSS / DMSS |
| Mobile Client |
iOS / Android |
| STORAGE & ALARM |
| MicroSD |
MicroSD Card up to 256GB |
| Storage |
FTP / SFTP / MicroSD / NAS |
| Alarm Input |
Supported |
| Alarm Output |
Supported |
| Alarm Events |
No SD Card / SD Card Full / SD Card Error / Network Disconnection / IP Conflict / Illegal Access / Motion / Video Tampering / Tripwire / Intrusion / Audio Detection / Voltage Detection / SMD |
| POWER |
| Power Supply |
12VDC / PoE |
| PoE |
IEEE 802.3af |
| Basic Power Consumption |
2.0W @ 12VDC / 2.5W @ PoE |
| Maximum Power Consumption |
5.7W @ 12VDC / 6.8W @ PoE |
| PROTECTION |
| Ingress Protection |
IP67 |
| Housing Material |
Metal + Plastic |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-40°C to +60°C |
| Storage Humidity |
≤95% RH, Non-Condensing |
| POWER & GENERAL |
| Power Supply |
12VDC / PoE |
| Maximum Power Consumption |
6.8W @ PoE |
| Dimensions |
201.0 × 103.8 × 97.8mm |
| Material |
Metal + Plastic |
| Net Weight |
0.68kg |
| Gross Weight |
1.27kg |
| Operating Temperature |
-40°C to +60°C |
| Protection Rating |
IP67 |
Note: The Dahua IPC-HFW2449M-S-B-PRO is a 4MP WizColor Fixed-focal Bullet WizSense Network Camera featuring a 1/1.8″ CMOS sensor, 2688 × 1520 resolution, 3.6mm or 6mm fixed-focal lens, 120dB WDR and a minimum illumination of 0.0005 Lux @ F1.0. It provides Smart H.265+/H.264+, SMD Plus, human and vehicle classification, intrusion and tripwire detection, built-in microphone, MicroSD storage up to 256GB and warm-light illumination up to 50m.
Important: The Dahua IPC-HFW2449M-S-B-PRO is a 4MP WizColor Bullet Network Camera with a 1/1.8″ CMOS sensor, 3.6mm or 6mm fixed-focal lens, 120dB WDR and 50m warm-light illumination. It supports SMD Plus, human and vehicle classification, intrusion, tripwire, Smart H.265+/H.264+, built-in microphone and up to 256GB MicroSD storage. The camera supports 12VDC and PoE power and features IP67 protection for outdoor installation.
